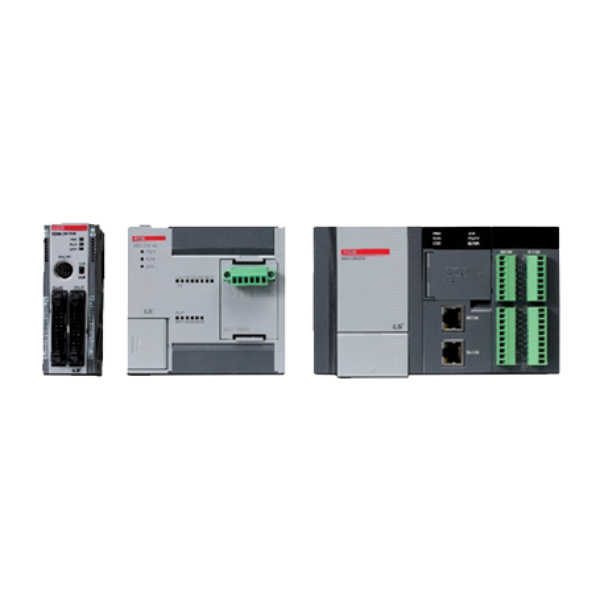

Block Type Unit Economic, AC 100-240V, 6 pts DC input , 4 pts relay output
SKU: XBC-DR10E
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
A small and adaptable programmable logic controller (PLC) for effective automation solutions is the LS Electric XBC-DR10E.
With its 10 input/output points, 6 digital inputs, and 4 relay outputs, it can be used with control systems that range in size from small to medium.
The device runs on a DC24V power source, which guarantees dependable operation in a range of industrial settings.
IEC programming languages are supported by the XBC-DR10E, making programming flexible and user-friendly.
It also has RS-232C and RS-485 built-in connection connectors, which make integrating it with other systems and devices simple.
The XBC-DR10E is a great option for applications needing dependable and effective control solutions because of its sturdy construction and compact design.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply Voltage: 100-240V AC.
Program capacity: 15k steps.
Relay Output Rating: 2A Resistive.
Max. I/O points: 384
Analogue, Input-, Output Resolution: 14-Bit
PID Control
High Speed Inputs
Positioning
Size: 180 x 64 x 90 mm
Program control method: Reiterative operation fixed cycle operation constant scan.
I/O control method: Scan synchronous batch processing method (Refresh method) Directed by program instruction.
Processing speed: 0.24 ㎲/Step
DC input: 6 points
Relay output: 4 points.
Rated voltage: AC110V~220V
Internal current consumption: 250mA
Weight: 330g
XBC Non-IEC (Master-K Type) PLCs, E / SU / H & XBM Versions
XBC-E Economic PLC (Master-K), 100-240V AC, 240 n/s Step, XBO Expansion Options Only
Key benefits:
Compact
Cost-effective
LADDER and IEC-1131 programmable.
From 38 to 284 I/O points
From 94 ns/step to 240 ns/step
From 4 to 200 Ksteps
