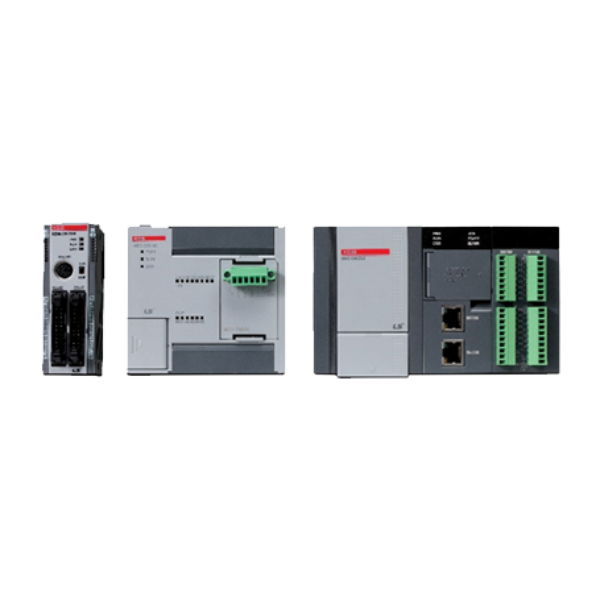

Block Type Unit (Economic), AC 100-240V, 8 pts DC input , 6 pts relay output
SKU: XBC-DR14E
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
A compact and adaptable programmable logic controller (PLC) for a variety of automation applications is the LS Electric XBC-DR14E.
With its eight digital inputs and six relay outputs, this unit can be used for a variety of control applications.
It has one option slot for further modules and runs on an AC110/240V power supply, enabling flexible system expansion up to a maximum of 18 I/O points.
With a 4,000-step program capacity and a processing speed of 240 ns per step, the XBC-DR14E provides dependable and effective performance.
With 1-phase (4 channels, 4kHz) and 2-phase (2 channels, 2kHz) capabilities, it provides high-speed counters.
Its integrated RS-232C and RS-485 connectors for communication make it simple to integrate with other systems and devices.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply Voltage: 100-240V AC.
Program capacity: 15k steps.
Relay Output Rating: 2A Resistive.
Max. I/O points: 384
Analogue, Input-, Output Resolution: 14-Bit
PID Control
High Speed Inputs
Positioning
Size: 180 x 64 x 90 mm
Program control method: Reiterative operation fixed cycle operation constant scan.
I/O control method: Scan synchronous batch processing method (Refresh method) Directed by program instruction.
Processing speed: 0.24 ㎲/Step
DC input: 8 points
Relay output: 6 points.
Rated voltage: AC110V~220V
Internal current consumption: 280mA
Weight: 340g
XBC Non-IEC (Master-K Type) PLCs, E / SU / H & XBM Versions
XBC-E Economic PLC (Master-K), 100-240V AC, 240 n/s Step, XBO Expansion Options Only
Key benefits:
Compact
Cost-effective
LADDER and IEC-1131 programmable.
From 38 to 284 I/O points
From 94 ns/step to 240 ns/step
From 4 to 200 Ksteps
