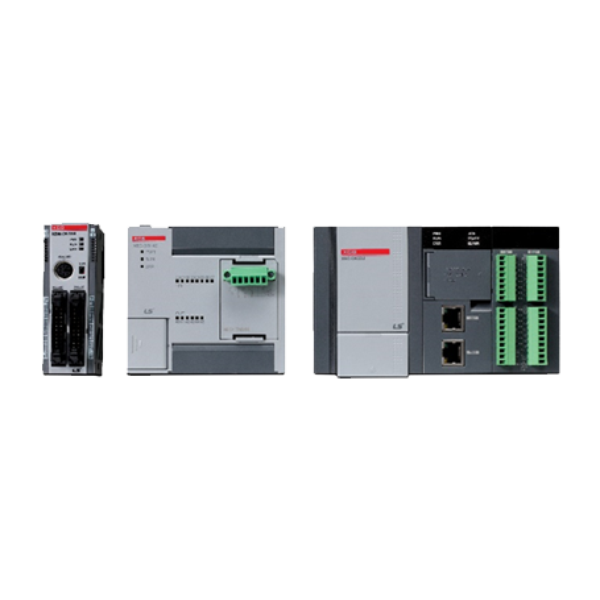

Block Type Unit (Economic), AC 100-240V, 18 pts DC input , 12 pts relay output
SKU: XBC-DR30E
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
A very capable and small programmable logic controller (PLC) for a variety of industrial automation applications is the LS Electric XBC-DR30E.
With its twelve relay outputs and eighteen digital inputs, this machine offers a wide range of connectivity for diverse control applications.
It is compatible with common industrial power systems because it runs on an AC110/220V power supply.
With a program capacity of 4,000 steps and high-speed processing support of 240ns per step, the XBC-DR30E is well-suited for intricate automation applications.
It may be easily integrated with other systems and devices because to its integrated RS-232C and RS-485 communication connectors.
To further increase its versatility and scalability, the unit can be expanded with up to two additional modules.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply Voltage: 100-240V AC.
Program capacity: 15k steps.
Relay Output Rating: 2A Resistive.
Max. I/O points: 384
Analogue, Input-, Output Resolution: 14-Bit
PID Control
High Speed Inputs
Positioning
Size: 100 x 64 x 90 mm
Program control method: Reiterative operation fixed cycle operation constant scan.
I/O control method: Scan synchronous batch processing method (Refresh method) Directed by program instruction.
Processing speed: 0.24 ㎲/Step
DC input: 18 points
Relay output: 12 points.
Rated voltage: AC110V~220V
Internal current consumption: 470mA
Weight: 465g
XBC Non-IEC (Master-K Type) PLCs, E / SU / H & XBM Versions
XBC-E Economic PLC (Master-K), 100-240V AC, 240 n/s Step, XBO Expansion Options Only
Key benefits:
Compact
Cost-effective
LADDER and IEC-1131 programmable.
From 38 to 284 I/O points
From 94 ns/step to 240 ns/step
From 4 to 200 Ksteps
