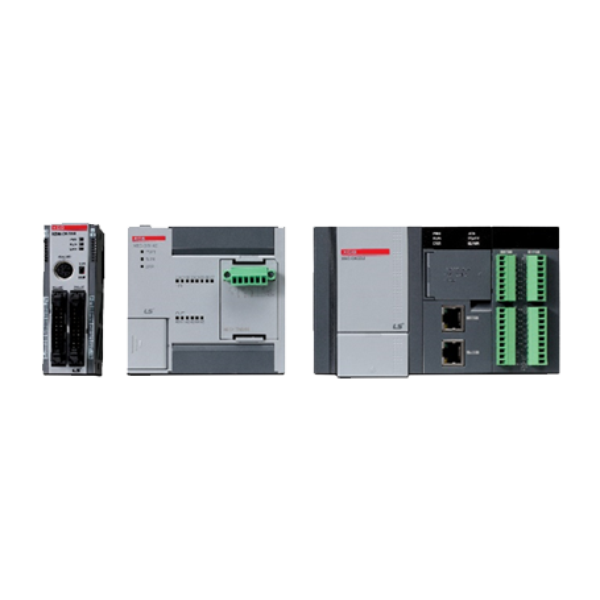

Block Type Unit (High Performance), AC 100-240V, DC24 input 16 pts, Relay output 16 pts
SKU: XBC-DR32H
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
A high-performance Programmable Logic Controller (PLC) for demanding industrial automation operations is the LS Electric XBC-DR32H.
With 16 digital inputs and 16 relay outputs, this machine offers a wide range of connectivity for diverse control applications.
It is compatible with common industrial power systems because it runs on an AC110/240V power supply.
With a program capacity of 15,000 steps and high-speed processing capabilities of 83 ns per step, the XBC-DR32H is well-suited for intricate automation applications.
It may be easily integrated with other systems and devices because to its integrated RS-232C and RS-485 communication connectors.
To further increase the unit's flexibility and scalability, up to 10 further modules can be added.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply Voltage: 100-240V AC.
Program capacity: 15k steps.
Relay Output Rating: 2A Resistive.
Max. I/O points: 672
Analogue, Input-, Output Resolution: 14-Bit
PID Control
High Speed Inputs
Positioning
Size: 114 x 90 x 64 mm
Program control method: Reiterative operation fixed cycle operation constant scan.
I/O control method: Scan synchronous batch processing method (Refresh method) Directed by program instruction.
Processing speed: 0.083 ㎲/Step
DC input: 16 points
Relay output: 16 points.
Internal current consumption: 660mA
Weight: 600g
XBC Non-IEC (Master-K Type) PLCs, E / SU / H & XBM Versions
XBC-E Economic PLC (Master-K), 100-240V AC, 240 n/s Step, XBO Expansion Options Only
Key benefits:
Compact
Cost-effective
LADDER and IEC-1131 programmable.
From 38 to 284 I/O points
From 94 ns/step to 240 ns/step
From 4 to 200 Ksteps
