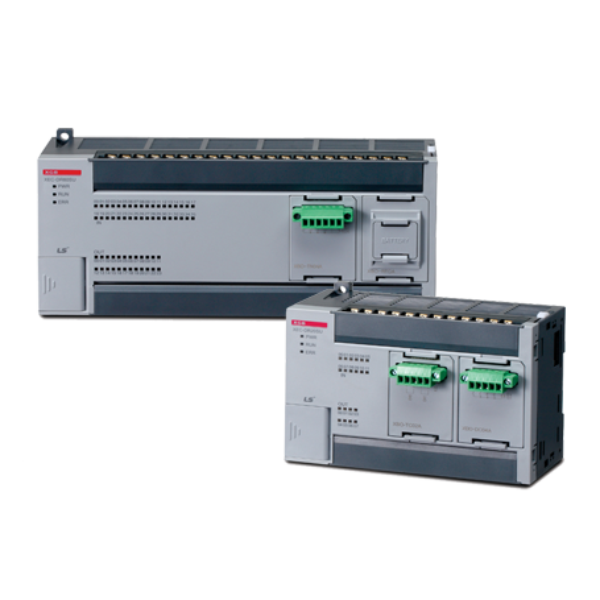

XBC Standard Type Unit, 36 x 24V DC In 24 x Rly Out PS2/USB loader
SKU: XBC-DR60SU
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
It is a simple compact type with a variety of functions required for basic control. The expansion option module allows for space optimization.
It facilitates the simple implementation of numerous projects by supporting a variety of networks and unique modules.
Buy currently uses Select Automation shop pricing and checkout.
Input specifications:
Input point: 36.
Rated input voltage: DC 24V
Rated input current: 4mA (contact point 0~1: 16mA, 2~7: 10mA)
Operation voltage range: DC 20.4 ~28.8V (Ripple rate <5%)
On voltage/ On current: DC 19V or more/ 3mA or more
Off voltage/ Off current: DC 6V or less/1mA or less
Input resistance: 5.6K Ω (P00~P07: 2.7KΩ)
Transistor output Specifications:
Output point: 24.
Insulation method: Photo-coupler
Rated load voltage: DC 12/24V
Load voltage range: DC 10.2~26.4V
Max. load voltage: 0.5A/1 point, 2A/ 1COM.
Off leakage current: 0.1 mA or less
Max. inrush current: 4A/10ms or less
Max. voltage drop (on): DC 0.4V or less.
Surges absorb: Zener diode.
Response time: off-on: DC 12/24V ±10% (Ripple voltage 4 Vp-p or less), on-off: 25mA or less (DC 24V connection)
Relay output specifications:
Output point: 24.
Insulation method: Relay insulation
Rated load voltage/current: DC 24V 2A/AC 220V 2A, 5A/COM
Min. load voltage/current: DC 5V/1Ma
Max. load current: AC 250V, DC 125V
Off leakage current: 0.1Ma (AC 220V, 60Hz)
Response time: off-on: 10ms or less, on-off: 12ms or less
