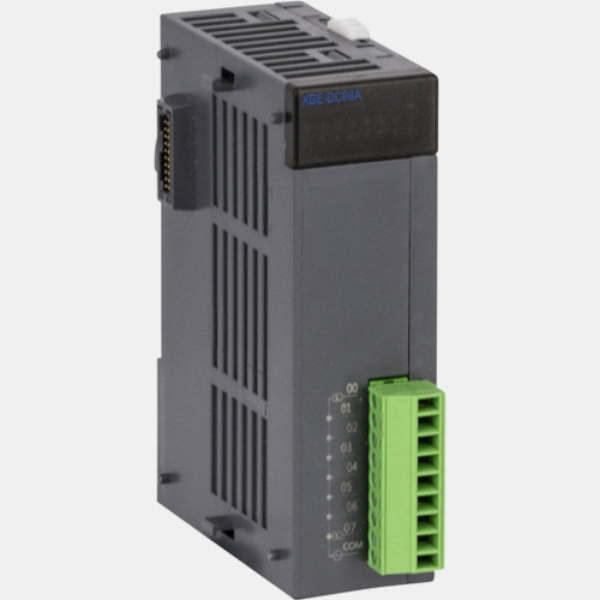

Expantion I/O Module, 8 pts DC24V input
SKU: XBE-DC08A
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
A digital input module made specifically for the XGB series of programmable logic controllers (PLCs) is the XBE-DC08A by LS Electrical.
With its eight DC24V input terminals, this module can be used in a wide range of industrial automation applications.
With a 30-mA usage current, it guarantees dependable performance.
The XBE-DC08A offers versatility and scalability for complicated control systems since it is designed to accommodate standard input signals and connects smoothly with other modules in the XGB series.
It is the perfect option for settings needing accurate and trustworthy input signal processing because of its small size and sturdy construction.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Input point: 8 points.
Rated input voltage / current: DC 24V / 4mA
Operation voltage range: DC 20.4 ~ 28.8V (Ripple rate < 5%)
Insulation pressure: AC 560Vrms / 3 Cycle (altitude 2000m)
Insulation resistance: 10MΩor more by megger
Common method: 8 points / COM
Internal current consumption: 30mA Category
DIGITAL EXPANSION I/O for XEC XEM PLCs
Current Consumption: 4mA @ 24VDC/point
Input Resistance: 5.6kΩ
On Voltage/On Current: 19VDC or more/2mA or More
Off Voltage/Off Current: 6VDC or less/1mA or Less
Response Time: Off → On 1/3/5/10/20/70/100ms (setting by CPU parameter) Initial Value: 3ms, On → Off 1/3/5/10/20/70/100ms (setting by CPU parameter) Initial Value: 3ms
Insulation Voltage: 560VAC RMS/3 Cycle (Altitude 2000m)
