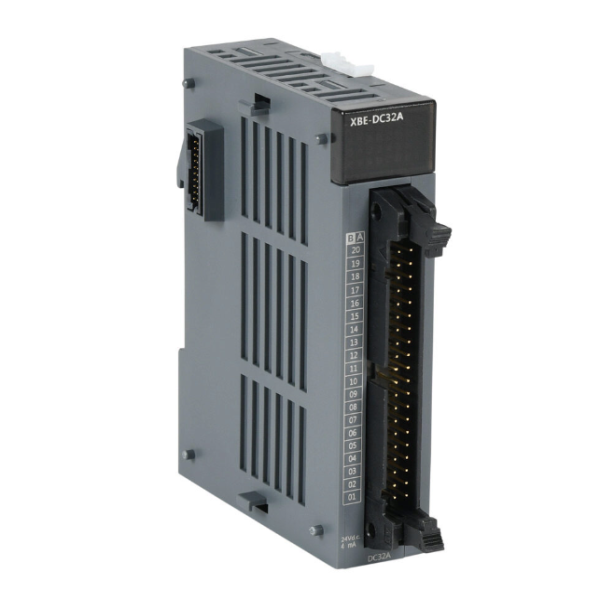

Expantion I/O Module 32 pts DC 24V input
SKU: XBE-DC32A
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
For industrial automation systems, LS Electric's XGB discrete input module (XBE-DC32A) is a flexible part.
It has sixteen input points that can accommodate both sourcing and sinking configurations and run at 24 VDC.
To provide effective and well-organized wiring, the module is built with one common for every 16 points. It also has detachable terminal blocks for simple upkeep and installation.
Applications needing dependable and adaptable input handling in PLC systems are best suited for this module.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Input point: 32 points.
Rated input voltage / current: DC 24V / 4mA
Operation voltage range: DC 20.4 ~ 28.8V (Ripple rate < 5%)
Common method: 32 points / COM
Internal current consumption: 50mA
Input Resistance: 5.6kΩ
Insulation Voltage: 560VAC RMS/3 Cycle (Altitude 2000m)
Insulation Resistance: 10MΩ
DIGITAL EXPANSION I/O for XEC XEM PLCs
