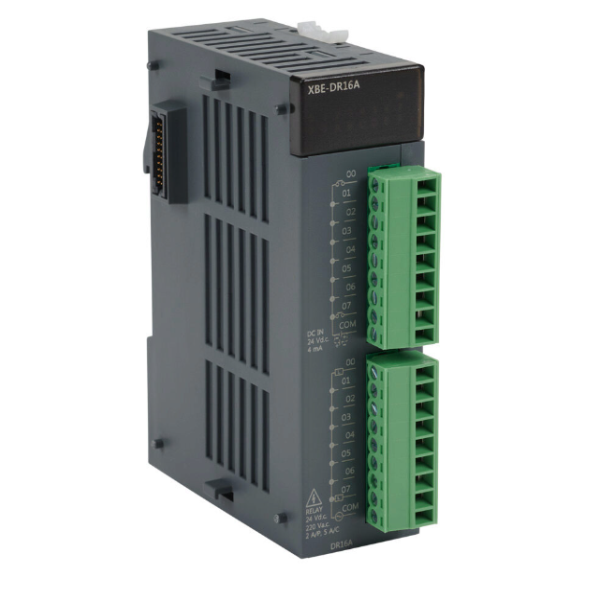

XGB Digital DC Input, 8 points, DC 24V
SKU: XBE-DR16A
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The 8-point, 16-point, and 32-point output modules make up the digital output, which is easily repaired with a terminal one-touch connection.
It offers a sort of relay and transistor.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Input point: 8 points.
Insulation method: Photocoupler.
Rated input voltage: DC 24V.
Rated input current: 4mA.
Operation voltage range: DC 20.4 ~ 28.8V (Ripple rate ＜ 5%).
On voltage/On current: DC 19V or more/3mA or more.
Off voltage/Off current: DC 6V or less/1mA or less.
Input resistance: 5.6kΩ.
Response time:
Off → On: 1/3/5/10/20/70/100ms (setting by CPU parameter) init value: 3ms.
On → Off: 1/3/5/10/20/70/100ms (setting by CPU parameter) init value: 3ms.
COMMON method: 8 points/COM.
Weight: 81g
