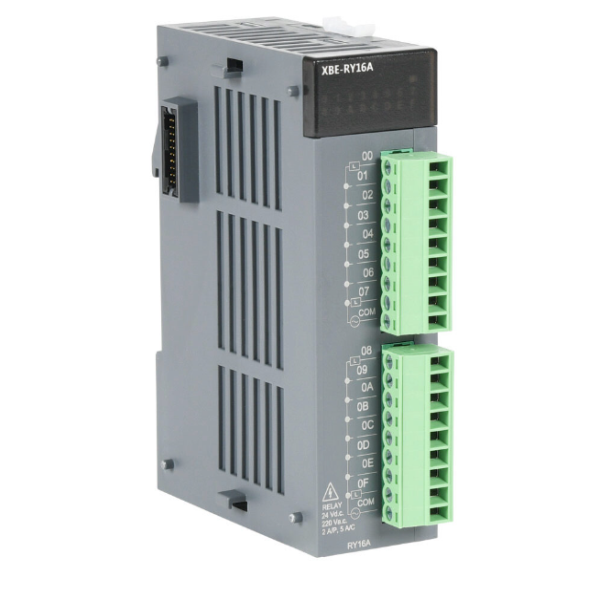

XGB Digital Relay Output Module, 16 points, 420mA
SKU: XBE-RY16A
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The 8-point, 16-point, and 32-point output modules make up the digital output, which is easily repaired with a terminal one-touch connection.
It offers a sort of relay and transistor.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Output point: 16 points.
Insulation method: Relay insulation.
Rated input voltage/Current: DC 24V 2A (resistive load)/AC 220V 2A (COSψ = 1), 5A /COM.
Min. load voltage/Current: DC 5V 1mA.
Max. load voltage: AC 250V, DC 125V.
Off leakage current: 0.1mA (AC 220V, 60Hz).
Max. on/Off frequency: 3,600 times / hr.
Surge absorber: None.
Response time:
Off → On: 10ms or less.
On → Off: 12ms or less.
COMMON method: 8 points / 1COM.
Internal current consumption: 420mA.
Operation indicator: Output On, LED On.
External connection method: 9-pin terminal block connector x 2.
Rated load voltage/Current 100,000 times or more.
Service life:
Mechanical: 20million times or more.
Electrical:
AC 200V/1.5A, AC 240V/1A (COSψ = 0.7) 100,000 times or more.
AC 200V/1A, AC 240V/0.5 (COSψ = 0.35) 100,000 tiems or more.
DC 24V/1A, DC 100V/0.1A (L / R = 7ms) 100,000 times or more.
