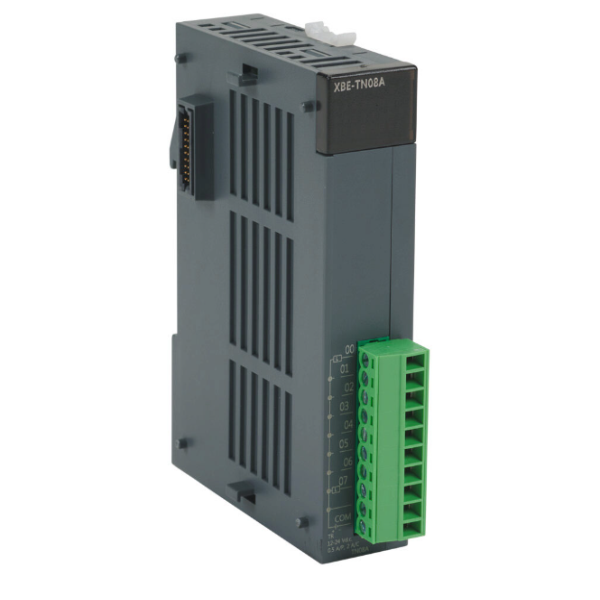

XGB Digital Transisitor Output, Sink, 8 point
SKU: XBE-TN08A
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
It consists of 8-point, 16-point, and 32-point output modules, and is easy to repair by terminal one-touch attachment.
It provides a transistor and relay type.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type: Sink
Output point: 8 points.
Rated load voltage: DC 12/24V
Load voltage range: DC 10.2-26.4V
Max. load current: 0.2A/1 point.
Off leakage current: 0.1Ma or less
Max. voltage drop (on): DC 0.4V
Response time: off-on: 1mA or less, on-off: 1mA or less (Rated load, resistive load)
Common method: 8 points/COM
Internal current consumption: 40mA
External power supply: voltage: DC 12/24V, Current: 10mA or less (DC 24V connection)
