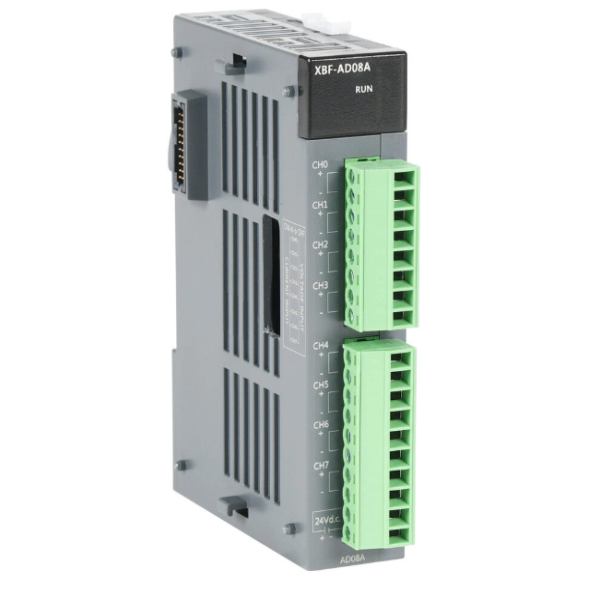

XGB Analog Input Module, 8-channel, 12-bit
SKU: XBF-AD08A
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Features:
Module for XGB series expansion, XBF-AD08A.
Current/Voltage (8 Channel) Analog Input (12 Bit).
110 mA of expansion power is needed.
Usable with PLCs of the SU, M, and U types.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Number of Channels: 8
Internal Current Consumption: 110mA
External Current Consumption: 85mA @ 24VDC/point
Range Voltage: 1-5VDC, 0-5VDC, 0-10VDC (Input resistance: 1MΩ min.)
Current: 4 to 20mA, 0 to 20 mA (Input resistance 250Ω)
Signal Resolution: 12 bits.
Max Resolution Voltage: 1.25mV (1-5VDC, 0-5VDC), 2.5mV (0-10VDC)
Current: 5µA (4-20mA, 0-20mA)
Unsigned Value: 0 to 4000
Signed Value: -2000 to 2000
Accuracy: ±0.5% max.
Max Conversion Speed: 1.5ms/channel
Max Absolute Input Voltage: DC ±15V
Current: DC ±25mA
