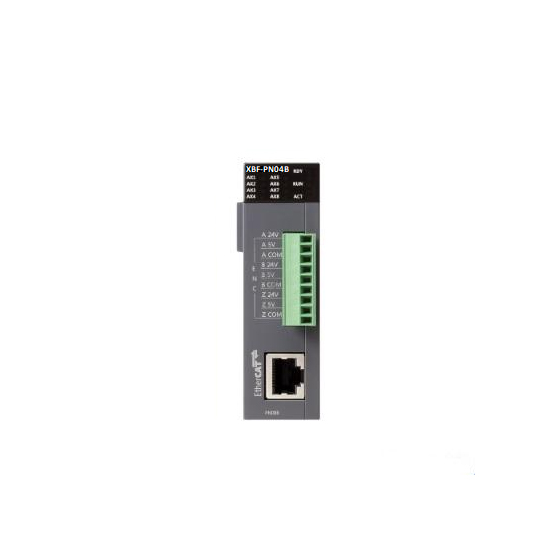

4-Axis Ethercat Positioning Lin Circ Helical Abs / Incr
SKU: XBF-PN04B
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
XG-PM:
Connection: RS-232C port of CPU module or USB.
Setting data: Common, Basic, Extended, Servo parameter, Operation data, Cam data, Command information.
Monitor: Operation information, Trace, Input terminal information, Error information.
Positioning:
Positioning method: Absolute method/Incremental method.
Acc./Dec. process: Trapezoid type, S-type.
Acc./Dec. time: 1~2,147,483,647ms, selection is available from 4 types of acceleration/deceleration pattern.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
No. of control axis: 4
Interpolation function: 2~8 axes linear interpolation, 2 axes circular interpolation, 3 axes helical interpolation.
Control method: Position control, Speed control, Speed/Position control, Position/Speed control,
Position/Torque Control, Feed control.
Control unit: Pulse, mm, inch, degree.
Positioning data: Each axis can have up to 400 operation data. (Operation step number: 1~400)
Available to set with XG-PM or program.
Back-up: Save the parameter, operation data in MRAM ROM (No need of Battery).
Manual Operation: Jog Operation, MPG Operation, Inching Operation.
Homing method: Refer to the method supported by the servo driver.
Speed change function: Speed change (Percent/Absolute value).
Torque unit: Rated torque % designation.
Absolute position system: Available (when using absolute encoder type servo driver).
Communication Period: 1ms.
Max. transmission distance: 100m.
Communication cable: Over CAT.5 STP (Shielded Twisted pair) cable.
Error indication: Indicated by LED.
Communication status indication: Indicated by LED.
Consumable current: 510mA.
Position address range:
Absolute:
Mm: -214748364.8~214748364.7
Inch: -21474.83648~21474.83647
Degree: -21474.83648~21474.83647
Pulse: -2147483648~2147483647
Incremental:
Mm: -214748364.8~214748364.7
Inch: -21474.83648~21474.83647
Degree: -21474.83648~21474.83647
Pulse: -2147483648~2147483647
Speed/Position, Position/Speed, Switching control:
Mm: -214748364.8~214748364.7
Inch: -21474.83648~21474.83647
Degree: -21474.83648~21474.83647
Pulse: -2147483648~2147483647
Speed range:
Mm: 0.01~20000000.00(ßÆ/min)
Inch: 0.001~2000000.000(Inch/min)
Degree: 0.001~2000000.000(degree/min)
Pulse: 1~20,000,000(pulse/SEC)
Rpm: 0.1~100000.0(RPM)
External Encoder input:
Channel: 1 channel
Max. Input: 200 kpps
Input form: Line drive input (RS-422A IEC specification), open collector output type encoder.
Input type: CW/CCW, PULSE/DIR, Phase A/B.
Connection connector: 9-point connector.
