Communication Module, 4channel RTD input
SKU: XBF-RD04A
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

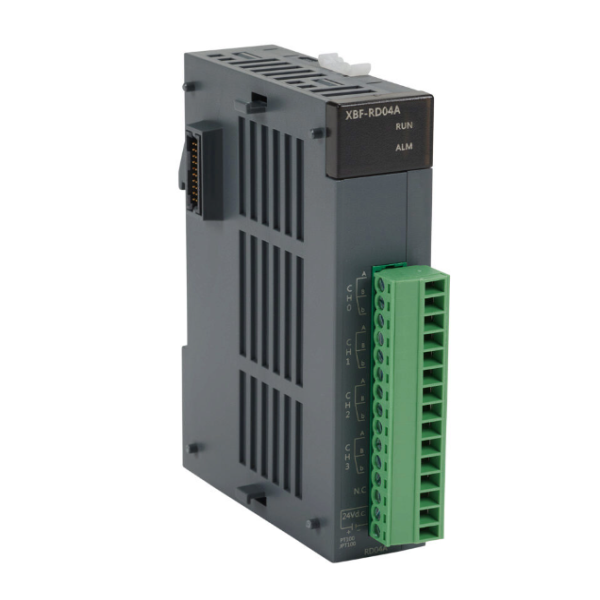

A temperature input module made specifically for the XGB PLC series is the LS Electric XBF-RD04A.
It supports Pt100 and JPt100 kinds and has four channels for RTD (Resistance Temperature Detector) inputs.
With a 14-bit resolution, this module provides accurate temperature readings.
Its detachable terminal block makes installation and upkeep simple.
The XBF-RD04A is a flexible addition to industrial automation systems, and it is perfect for applications needing precise temperature monitoring and control.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Number of input channels: 4
Input sensor type: PT100 JIS C1604-1997; JPT100 JIS C1604-1981, KS C1603-1991
Temperature input range: PT100 -200 ~ 600℃; JPT100 -200 ~ 600℃
Digital output: PT100 -2000 ~ 6000; JPT100 -2000 ~ 6000
Accuracy; Normal temp. (25℃)
Conversion speed: 40ms / Ch
Terminal block: 15-point terminal block
I/O points occupied: Fixed type: 64 points.
Wiring method: 3-wire
Function - Filtering Digital filter (160 ~ 64000ms)
Current consumption: DC 5V: 100mA DC 24V: 100mA
