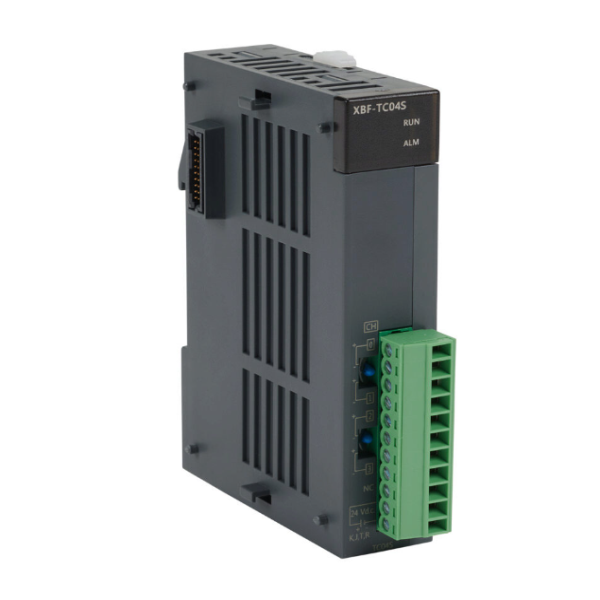

Communication Module, 4 channel thermocouple input
SKU: XBF-TC04S
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
For precise temperature measurement, LS Electric's XGB temperature input module (XBF-TC04S) is a high-precision, multipurpose tool.
With its four channels and 14-bit resolution, it provides accurate and detailed data.
This module is appropriate for a variety of industrial applications because it supports RTD types Pt100 and JPt100.
It also has a detachable terminal block for simple upkeep and installation.
If you want to incorporate temperature monitoring into your LS Electric XGB PLC system, this module is a great option.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
No. of channel: 4
External Current Consumption: 100mA@ 24VDC/point
Internal Current Consumption: 100mA
Input Sensor Type: Thermocouple: K, J, T, R, JIS
Maximum Conversion Speed: 50ms/channel
Classification: Thermocouple Input module
Characteristic: External DC24V used Filter function average function
I/O occupied points: 64 points
