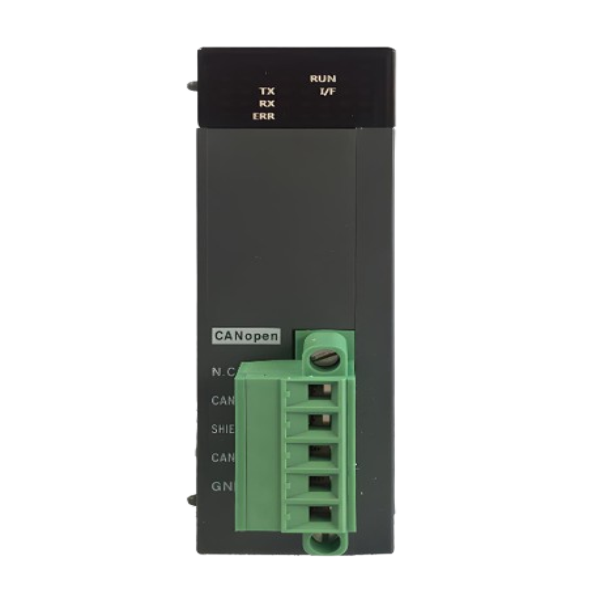

CANopen Master I/F Communication Module, 211mA
SKU: XBL-CMEA
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The CANopen network, an open network based on the CANopen (CiA's DS301) standard, is utilized in industrial control equipment.
There are up to 32 slave connections available, support for up to 1 Mbps of transmission speed, several diagnostic tools, and network status information.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Baud Rates (kbps): 10,20,50,100,125,250,500,800,1000 kbps.
Number of Communication Ports: 1.
Number of Maximum Connection Nodes: 32.
Number of Supported PDOs:
TPDO: 32.
RPDO: 32.
Maximum Data Length per a PDO: 8 Bytes.
Transmission Type of PDOs: Synchronous acyclic (0), synchronous cyclic (1-240), RTR (252-253), time event trigger (254-255).
Supported SDO1: Client 127 / Server 1.
Transmission Type of SDOs: Expedited, Normal.
Communication Zone Excess Method: CSMA/BA (Carrier Sense Multiple Access / Bitwise Arbitration).
Topology: BUS.
SYNC Service: Producer, cycle: 20-5000ms.
NMT Node Control: NMT Master.
NMT Error Control: Heartbeat, Life Guarding.
Network Scan: Supported.
Dimensions:
Height: 90mm.
Width: 27mm.
Depth: 60mm.
Weight: 78g.
Consumption Current (mA): 211.
