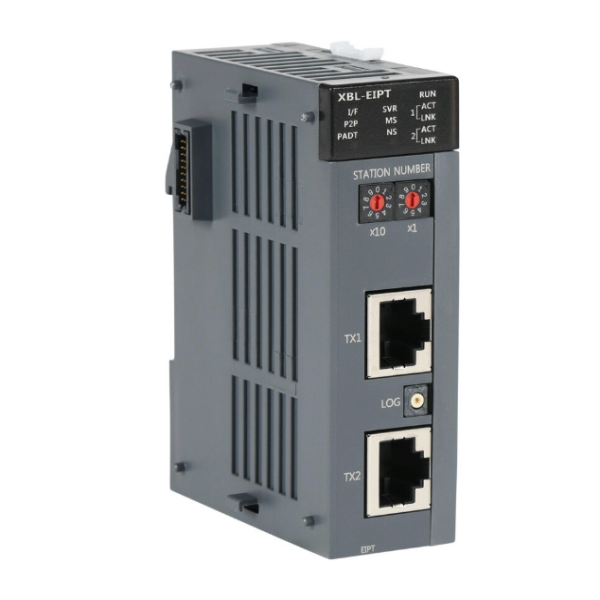

Communication Module, EtherNet/IP, 2 ports, (2) Ethernet 10/100Base-T (RJ45) Port(s)
SKU: XBL-EIPT
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
On top of an upper layer of open protocol Ethernet, EtherNet/IP is the protocol that houses Common Industrial Protocol (CIP: industrial protocols used in common, such as Device Net, ControlNet, CompoNet, etc.).
By using the same objects and profiles, EtherNet/IP enables developers of DeviceNet, ControlNet, and CompoNet to ensure the interoperability of multi-band and lower network devices.
The EIP module is the module for transmitting data between PCCs or between PLC and EtherNet/IP I/F IO module. It has two Ethernet Ports (Ethernet Port) and includes the switch function needed for the current STAR system.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Communication Ports: 2 Ethernet 10/100Base-T (RJ45) ports.
Supported Protocols: EtherNet/IP.
Data Transfer Rate: 10/100 Mbps.
Maximum Number of Modules: Up to 2 XBL-EIPT modules per XGB PLC rack.
Network Topologies Supported: Star and Line.
Maximum Distance: Depends on network infrastructure.
IP Address Configuration: Separate from the built-in Ethernet port on the XEM CPU.
Connection Types:
TCP Client: 16 connections.
TCP Server: 32 connections.
CIP (I/O Communication) Client: 32 connections.
CIP (I/O Communication) Server: 64 connections.
Maximum Data Size per Block:
EtherNet/IP Scanner: 500 bytes.
Explicit Client: 512 bytes.
Programming Software: Requires XG5000 programming software v4.76 or later.
Firmware Requirements: XEM PLC firmware 2.4 or later.
Built-in Features: 2-port switch for network connectivity.
Dimensions:
Height: 90mm.
Width: 70mm.
Depth: 60mm.
Weight: 0.27kg.
