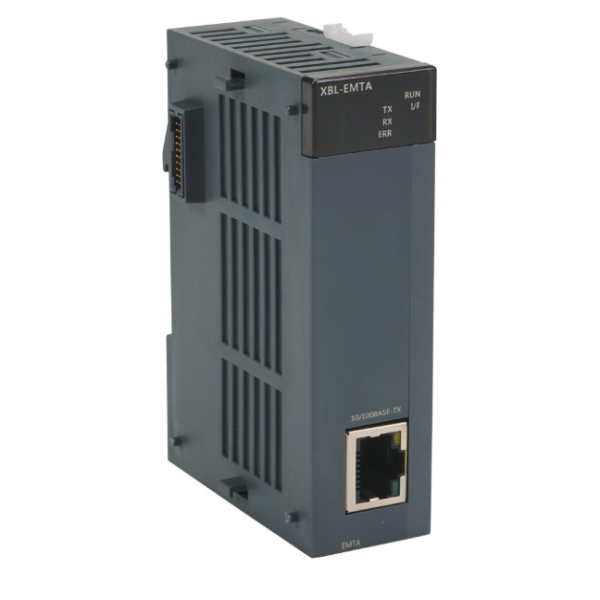

XGB communication module, Modbus TCP and LS XGT protocol, 1 port
SKU: XBL-EMTA
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
PLCs in the electric XGB series. This module ensures dependable and smooth data interchange in a range of industrial applications by supporting both the Modbus TCP and LS XGT protocols.
It has a single Ethernet 10/100Base-T connection (RJ45), which enables fast data transfer and reliable network connectivity.
The XBL-EMTA is a crucial part of optimizing performance and guaranteeing seamless operation because it is designed to enable effective communication and integration into your automation systems.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Communication spec: 10/100Base-TX
Protocol: TCP/IP, UDP/IP
Service: with LS PLC’s: High-speed link, P2P service, With other devices: P2P service, Application:
XGT Dedicated protocol server/client, Modbus/TCP Server/client.
HS link sending/receiving data: 200 words/block (Max. 64 blocks)
No. of channel connectable to upper stage: 6 channels.
Service: communication with PC (HMI) and external devices, High-speed communication among LS ELECTRIC PLC’s.
Media: UTP/STP category 5.
Current consumption: 300mA
