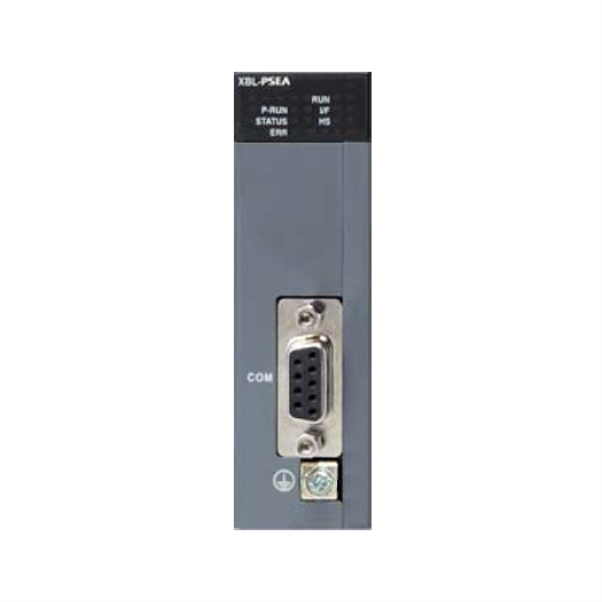

XGB Communication Module Profibus DP Slave
SKU: XBL-PSEA
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
Profibus-DP is an appropriate network for Field Level's FA environment and supports Profibus-DP V0 and V1 protocols.
It works well for communicating with dispersed slave I/O devices and master devices.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Module type: Slave
Network type: Profibus-DP
Standard: EN501170/DIN 19245
Interface: RS-485 (Electric)
Topology: Bus type
Modulation type: NRZ (Non-Return to Zero)
Protocol: Profibus DP-V0
Max. number of stations per segment: 32 (including master and repeater)
Cable used: Electric twist shielded pair cable.
Max. communication size: Input: 122-word, Output: 122 words
Max, communication size per block: Input: 64-word, Output: 64 words
Communication transmission cycle: 10/20/50/100/200/500ms, 1/5/10s
Max. number of units installed: 2 units.
Communication parameters to set: XG5000 (setting station and high-speed link parameter block)
Internal-consumed current (Ma): 250
