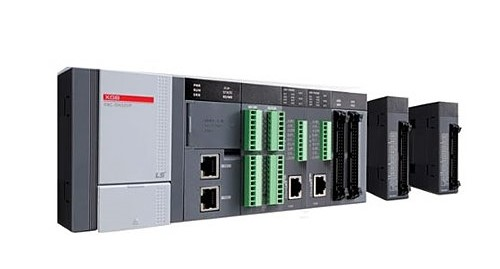

Rnet Master
SKU: XBL-RMEA
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Rnet Master Communication unit:
Data Processing unit: Byte
Tx/Rx cycle: Selection among 20ms, 50ms, 100ms, 200ms(default), 500ms, 1s, 5s, 10s
Max. Communication points: 3,780 Bytes (slave 31stations * 120Bytes/station)
Max. Block number: 64 (setting range: 0~63)
Max. points by Block: 120 Byte (60words)
Auto scanning: Supported
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Transmission speed: 1Mbps (Rnet I/F modules common)
Max. Tx distance: 750m
Connection Cable: Twisted pair shielded cable
Maximum stations connected (Network): Master station 1[station no:0(fixed)] and Slave stations up to 31[station no:1~63) Only 1 master is available in the network.
Diagnostic function: XG5000: High Speed Link Monitoring
Terminal resistance (Ω): 110 Ω (±5%), 1/2W
Master/Slave operation: Only available as Master
Max. module mounted: 2 modules.
