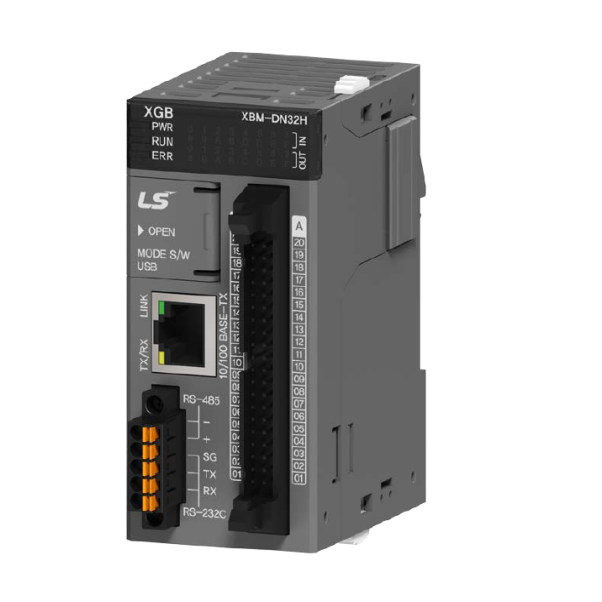

Main Unit, DC24V power supply, DC24V input 16 point, Transistor output 16 point (sink)
SKU: XBM-DN32H
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
A dependable and adaptable main unit for industrial automation applications is the LS Electrical XBM-DN32H. It has 16 DC input points and 16 transistor output points (sink type), and it runs on a DC24V power supply.
With its reliable performance and smooth interaction with other automation systems, this module is perfect for monitoring and regulating a variety of industrial operations.
Because of its small size and integrated protection measures, it can be easily installed in conventional control panels and operates safely and dependably even in harsh settings.
The XBM-DN32H is a component of the extensive automation product line from LS Electrical, which is intended to improve industrial settings' efficiency and production.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Program control method: Cyclic execution of stored program, Time-driven interrupt, Process-driven interrupt.
I/O control method: Batch processing by simultaneous scan (Refresh method), Directed by program instruction.
Program language: Ladder Diagram, Instruction List.
Number of instructions:
Basic: About 30.
Application: About 740.
Processing speed (Basic instruction): 83ns/step.
Program capacity: 20Kstep.
Max. I/O points: 256 points (Main + Expansion 7 stages).
Total program: 128.
Initial task:
Initial task: 1
Cyclic task: Max 16.
I/O task: Max 8.
Internal device task: Max 16.
High Speed Counter task: Max 4.
Operation mode: RUN, STOP, DEBUG.
Self-diagnosis function: Detects errors of scan time, memory, I/O and power supply.
Program port: USB 1 channel.
Back-up method: Latch area setting in basic parameter.
Internal consumption current: 430mA.
Weight: 134g.
