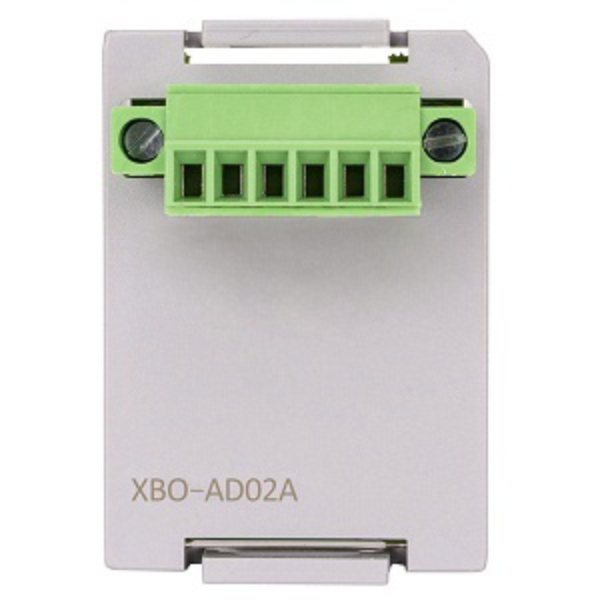

Option Module, Voltage/Current, Input 2 Channel
SKU: XBO-AD02A
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The 4-channel, multipurpose LS Electric XGB analogue input module XBO-AD02A is made to accept both voltage and current inputs.
Its 12-bit resolution allows for accurate data collection.
Input voltage signal ranges of 0-10 VDC and input current signal ranges of 0-20 mA and 4-20 mA are supported by the module.
To operate, a 24 VDC external power supply is needed.
Applications in industrial automation systems that need accurate and dependable analogue signal processing will find this module appropriate.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Number of channels: 2 channels
Voltage: 0 to 10VDC (Input Resistance: 1MΩ minimum)
Current: 4 to 20mA, 0 to 20mA (Input Resistance 250Ω)
Signal Resolution: 12 bits.
Max. conversion speed: 1ms/channel + scan time
Input terminal: 5 – point terminal block.
I/O points occupied: Fixed type: 64 points.
Supply power: Inner DC 5V.
Consumption current: 50 mA
Weight: 20g
XBM / XEC-E and SU Type Clip-in Option Modules
