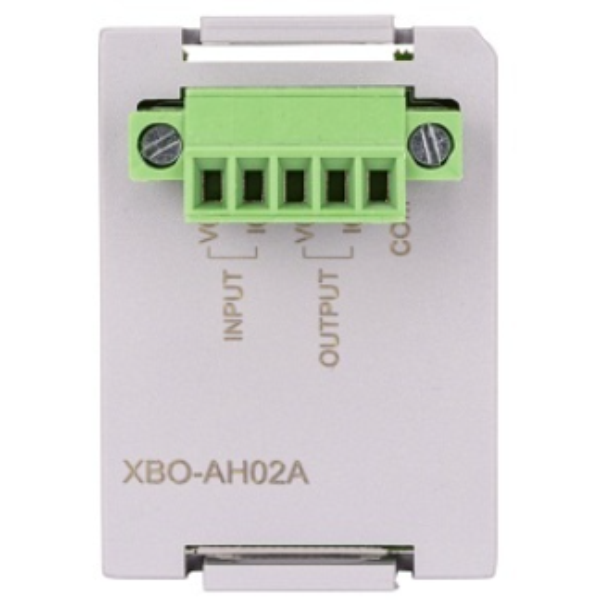

Analog Option Module, Voltage/Current, Input 1ch / Voltage/Current, Output 1ch
SKU: XBO-AH02A
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
For usage with programmable logic controllers (PLCs), the LS Electrical Analog Option Module, XBO-AH02A, is a dependable and adaptable module.
It can handle input ranges of 0-10VDC and 0-20mA and output ranges of 0-10VDC and 0-20mA. It has one analogue input and one analogue output channel.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Number of channels: 1
Voltage Range: DC 0 ~ 10V
Current Range: DC 4 ~ 20mA, DC 0 ~ 20mA
Max. conversion speed: 1ms/channel + scan time
Output Specification
Number of channels: 1
Voltage Range: DC 0 ~ 10V
Current Range: DC 4 ~ 20mA, DC 0 ~ 20mA
I/O terminal: 5-point terminal block
I/O occupation point: Fixed type 64 points
Supply power: Internal DC5V
Consumption current: 150㎃
