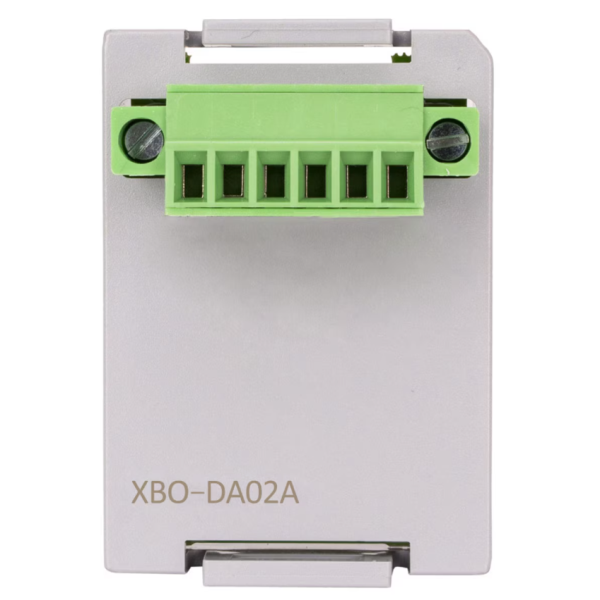

Analog Output Option Board, 2 Channels 64 Fixed Type Points
SKU: XBO-DA02A
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Features:
To control and keep an eye on temperature measurements, use PLCs of the "E" and "SU" types.
Module accepts either Current or Voltage output.
LS Electric Agency Approved: UL, cUL, CE.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Number of channels: 2
Voltage Range: 0 to 10VDC (Input Resistance: 1MΩ minimum)
Current Range: 4 to 20mA, 0 to 20mA (Load 450Ω or less)
Setting Range: In User Program or I/O Parameter per Channel
Signal Resolution: 12 bits.
Maximum Conversion Speed: 1ms / Channel + Scan Time
Analogue Input/Output: 2 Channel A/V Output
Output Type: Analogue DC 0~10V /4~20mA /0~20mA.
Product Category: Compact PLC (XGB)
Product Type: Option Board
XBM / XEC-E and SU Type Clip-in Option Modules
