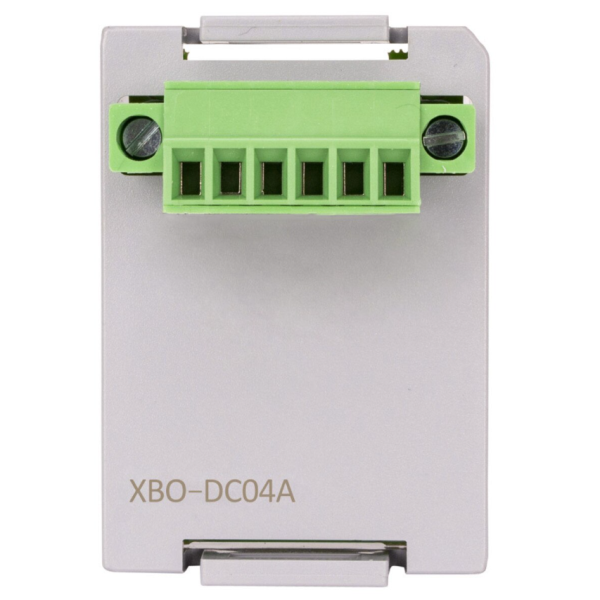

Option Board, DC IN, 4 Point, 24VDC, Sinking/Sourcing
SKU: XBO-DC04A
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
Extra inputs can be added to "E" and "SU" type PLCs with ease.
Installed in "SU" type PLCs, inputs can be used for the high-speed counter function.
When employing one phase high-speed counting, 4kpps at 4 channels Electric is achieved.
Electric: UL / cUL / CE Agency Approved.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Input Operation Voltage Range: 20.4 to 28.8VDC (Ripple Rate <5 %).
Input Resistance: 2.7kΩ.
Input On Voltage / On Current: 19VDC or more / 3mA or more.
Input Voltage Off / Off Current: 6VDC or less / 1mA or less.
Input Response Time:
Off / On: 1/3/5/10/20/70/100ms (Setting by CPU Parameter) Initial Value: 3ms.
On / Off: 1/3/5/10/20/70/100ms (Setting by CPU Parameter) Initial Value: 3ms.
High Speed Counter Functions: SU Type ONLY.
Count Mode: Linear.
Count Input Signal:
Signal: A-Phase, B-Phase.
Input Type: Voltage Input (Open Collector).
Signal Level: 24VDC.
Maximum Count Speed: 4kpps.
Count Range: Signed 32-bit (-2,147,483,648 to 2,147,483,647).
Count Type: Linear Count (Carry / Borrow occurs when exceeds 32-bit range).
Input Pulse Mode: 1-Phase Input, 2-Phase Input.
Up / Down Setting:
1-Phase Input: Increasing / Decreasing Operation Setting by B-Phase Input or Increasing / Decreasing Operation Setting by Program.
2-Phase Input: Automatic Setting by Difference in Phase.
Multiplication Function:
1-Phase Input: Multiplication.
2-Phase Input: Multiplication.
Signal Type: Voltage.
Count Enable: Set by Program.
Preset Function: Set by Program.
