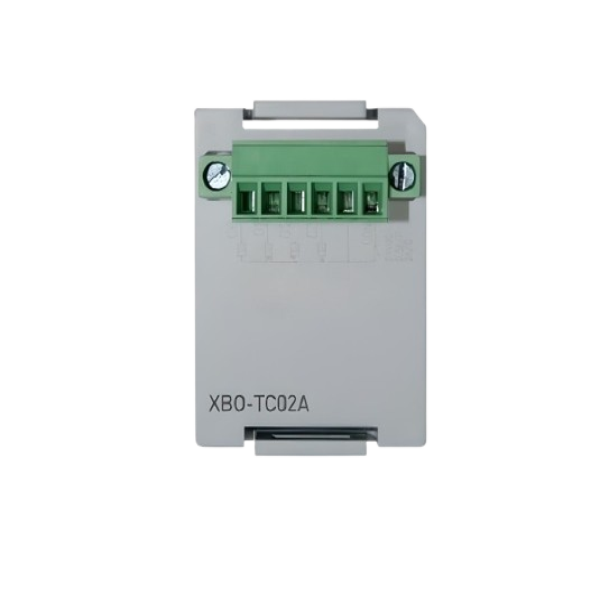

Thermocouple Input Option Module, 2 Channels, 64 Fixed Points
SKU: XBO-TC02A
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
A flexible thermocouple input option module, the LS Electrical XBO-TC02A is made to improve the performance of PLCs, or programmed logic controllers.
With its two thermocouple input channels, this module enables accurate temperature control and monitoring in industrial settings.
Its 64 fixed points provide accurate and dependable data capture, which makes it perfect for procedures that need to maintain strict temperature control.
The XBO-TC02A offers a reliable solution for temperature measurement needs and is small and simple to incorporate into current systems.
Being a reliable and high-performing component, it may be added to any industrial automation configuration.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Number of input channel: 2 Channels.
Type of input sensor: Thermocouple K / J type (JIS C1602-1995).
Range of input temperature:
K type sensor: -200.0℃ ~ 1300.0℃.
J type sensor: -200.0℃ ~ 1200.0℃.
Digital output:
Temp. display unit: 16-bit binary data, Displaying down to one decimal place, (K, J, type: 0.1℃)
Accuracy: ±1.0% or less.
Conversion speed: 50ms/2chanelles –note1).
Reference junction compensation:
Auto compensation by RJC sensing (Thermistor).
Compensation amount: ±1.0℃.
Additional Function:
Average process: Count averaging.
Alarm: Input disconnection detection.
Warming-up time: 15 min or above – note2
Insulation method:
Non-insulation between input channels.
Non-insulation between input terminal and PLC main unit.
I/O terminal: 5-point terminal block.
Max. number of equipment:
1 (when using XBC-DR10E/DR14E type).
2 (when using XBC-DR20E/DR30E type).
2 (when using XBC-DxxxS type).
Supply power: Internal DC5V.
I/O occupied points: Fixed type: 64 points.
Consumption current: 50mA.
Weight: 20g.
