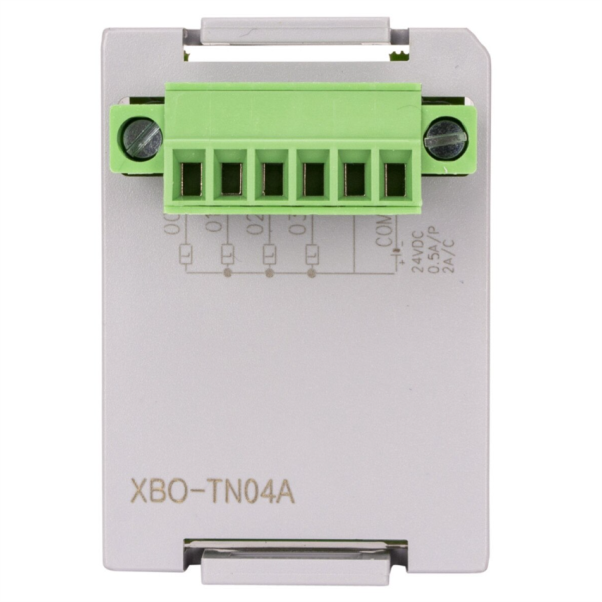

Option Board, Transistor OUT (Sinking), 4-channels
SKU: XBO-TN04A
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The XGB Front Panel Option Board is compatible with both E and SU Type PLCs and features a 4-ch, 2-axis Low Speed Type Positioning for Transistor Output (Sinking).
Option board: 80mA of electricity is needed.
Extra outputs can be added to "E" and "SU" type PLCs with ease.
In "SU" type PLCs, outputs can be installed and used for positioning.
LS Electric has agency approval from UL, cUL, and CE.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Output Rated Load Voltage: 24VDC.
Output Maximum Load Current:
0.5A / Point.
2A / COM.
Output Leakage Current When Off: 0.1mA or less.
Output Voltage Drop When On: 1VDC or less.
Output Inrush Current: 3A for 10ms or less.
Output Response Time:
Off / On: 1ms or less.
On / Off: 1ms or less (Rated Load, Resistive Load).
High Speed Counter Functions: SU Type Only.
Pulse Output:
Number of Axis: 2.
Output Method: Open Collector.
Control Unit: Pulse.
Control Speed: 10kpps (One Option Board Supported - Number 9 Slot).
Setting Method: Setup by DST Instruction.
Control Method: Position Control, Speed Control.
Positioning Method: Incremental.
Address Range: -2,147,483,648 to 2,147,483,647.
Maximum Connection Distance: 2m.
