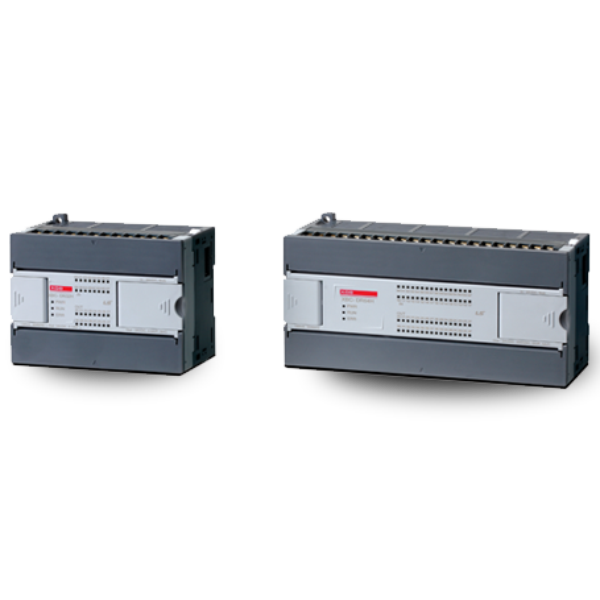

XEC H-Type High Performance220V AC Pwr 32x 24V In 32x NPN out PS2/USB loader
SKU: XEC-DN64H
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Features:
XBC/XEC (H-Type)
83ns/Step processing speed and floating-point arithmetic with on-board CPU
Max 10 expansion modules Max. 384 I/O point control: PLC systems for Small- and medium-scale applications
Max. 5-Ch Communication with built-in functions and expansion modules
Categories: XEC High Performance PLC, Max 10 Exp Cards, 384 I/O Points, HSC, RTC, Pos Func
IEC 61131 PLC, 12/24V DC or 100-240V AC, USB, 83 n/s Step, HSC, RTC. Pos
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Transistor output specification:
Output point: 32.
Insulation method: Photo-coupler insulation
Rated load voltage: DC 12/24V
Load Voltage range: DC 10.2 ~ 26.4V
Max. load voltage: 0.5A/1 point (P20 ~ 23: 0.1A/ point)
Off leakage current: 0.1mA or less
Max. inrush current: 4A/10ms or less
Max. Voltage drop (on): DC 0.4V or less.
Surge absorber: Zener diode.
Common method: P20 ~ 2F: 4 points/COM, P30 ~ 3F: 8points/COM.
External power supply: Voltage: DC 12/24V ± 10% (Ripple voltage 4 VP-P or less), Current: 10 Ma or less (DC 24V connection)
