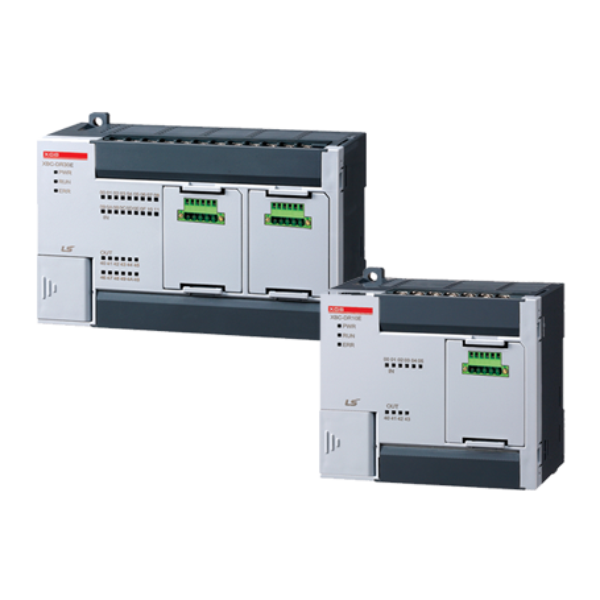

XEC Economic Type 220V AC Pwr 18 x 24V DC In 12 x PNP Out RS-232 loader
SKU: XEC-DP30E
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
A line of affordable programmable logic controllers (PLCs) intended for industrial automation applications is the LS Electrical XBC/XEC E-Type series.
Together with features like modular architecture, simple installation, and a variety of configuration possibilities, these controllers provide strong performance and dependability.
While the XEC models include transistor outputs to meet a range of control requirements, the XBC models usually concentrate on relay outputs.
Both series are compatible with many field devices and systems because they support a large variety of input and output combinations.
These PLCs offer effective control and monitoring solutions for industrial processes and are appropriate for tough situations thanks to their DC 24V operating voltage.
Buy currently uses Select Automation shop pricing and checkout.
Transistor output Specifications:
Output point: 12.
Insulation method: Photo-coupler
Rated load voltage: DC 12/24V
Operation load voltage range: DC 10.2~26.4V
Max. load current: 0.5A/1 point, 2A/COM.
Off leakage current: 0.1mA or less
Max. inrush current: 4A/10 MS or less
Max. voltage drop when on: DC 0.4V or less.
Surge absorber: Zener diode.
Response time: off-on: 1ms less, on-off: 1ms less (Rated load, resistive load)
Common method: 4 point/COM
Propper wire size: stranded wire 0.3~0.75m² (external diameter 2.8mm or less)
External power, voltage: DC 12/24V ±10% (ripple voltage 4Vp-p or less)
External power, current: 25mA or less (when connecting DC 24V)
Operation indicator: LED on when output on
External connection method: 24-point terminal block connector (M3 x 6 screw)
