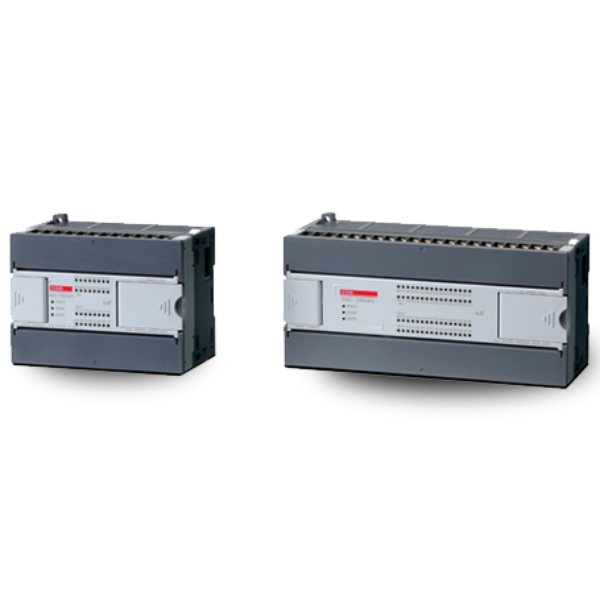

XEC H-Type High Performance, 220V AC Pwr 32x 24V In 32x PNP out PS2/USB loader
SKU: XEC-DP64H
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
XBC/XEC (H-Type).
83ns/Step processing speed and floating-point arithmetic with on-board CPU.
Max 10 expansion modules Max. 384 I/O point control: PLC systems for Small- and medium-scale applications.
Max. 5-Ch Communication with built-in functions and expansion modules.
Categories: XEC High Performance PLC, Max 10 Exp Cards, 384 I/O Points, HSC, RTC, Pos Func.
IEC 61131 PLC, 12/24V DC or 100-240V AC, USB, 83 n/s Step, HSC, RTC. Pos.
Buy currently uses Select Automation shop pricing and checkout.
Input Specifications:
Input points: 32.
Rated input Voltage: DC 24V
Rated input current: 4Ma (contact 0 ~7: 9mA
Operation voltage range: DC 20.4 ~28.8V (Ripple rate <5%)
On voltage/on current: DC 19V or more/3Ma or more
Off voltage/off current: DC 6V or less/ 1mA or less
Input resistance: 5.6Ω (P00~P07:2.7KΩ)
