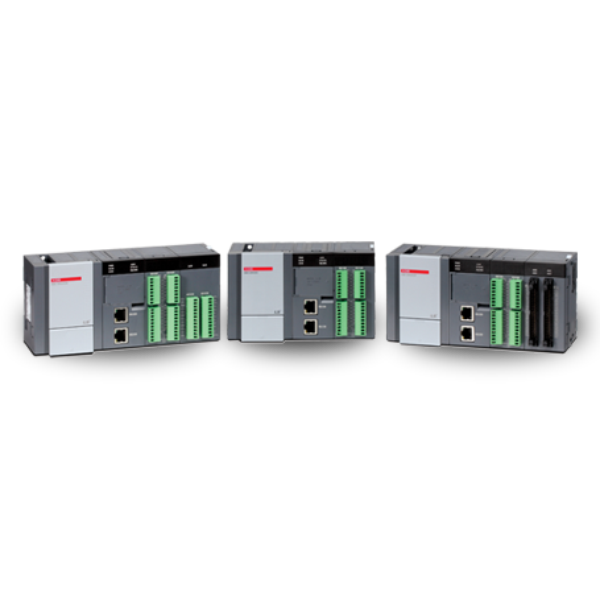

XEC Ultimate Type 220V AC Pwr 2-Port Ethernet Sw Webserver IoT HSC RTC 16 Inp 12 x Relay Out
SKU: XEC-DR28U
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
An ultimate range of programmable logic controllers (PLCs) made for demanding industrial automation applications is the LS Electrical XBC/XEC U-Type series.
These controllers have modular designs that make installation and configuration simple and provide strong performance, dependability, and flexibility.
To meet a range of control requirements, the XEC models have transistor outputs, whereas the XBC versions usually have relay outputs.
Both series are compatible with many field devices and systems because they support a large variety of input and output combinations.
These PLCs offer effective control and monitoring solutions for industrial processes and are appropriate for tough situations thanks to their DC 24V operating voltage.
Buy currently uses Select Automation shop pricing and checkout.
Input Specifications:
Input point: 16.
Insulation method: Photo-coupler
Rated input voltage: DC 24V
Rated input current: About 4mA (contact point 0~3: about 7mA)
Operation voltage range: DC 20.4~28.8V (within ripple rate 5%)
On voltage/On current: DC 19V or higher/3mA or higher
Off voltage/Off current: DC 6V or lower/1mA or lower
Input resistance: about 5.6KΩ (P00~P07: about 4.7KΩ)
Insulation pressure: AC 560Vrms/3 cycle (altitude 2000m)
Insulation resistance: 10ms or more by megohmmeter
Common method: 16 points/COM
Proper cable size: 0.3~0.75mm²
Operation indicator: LED on when input on
External connection method: 8-point terminal block + 10-point terminal connector
Transistor output specifications:
Output point: 16.
Insulation method: Photo-coupler
Rated load voltage: DC 12/24V
Operation load voltage range: DC 10.2~26.4V
Max. load current: 0.5A/1 point, 2A/1COM.
Off leakage current: 0.1mA or less
Max. inrush current: 4A/10 ms or less
Max. voltage drop when on: DC 0.4V or less.
Surge absorber: Zener diode.
Response time: on-off: 1 ms or less (rated load, resistive load), off-on: 1ms or less
Common method: 16 point/COM
Proper wire size: stranded wire 0.3~0.75mm² (external diameter 2.8mm or less)
External power, voltage: DC 12/24V ±10% (Ripple voltage 4VP-p or less)
External power, current: 10mA or less (when connecting DC 24V)
Operation indicator: LED on when output on
External connection method: 8-point terminal block connector + 10-point terminal block connector
