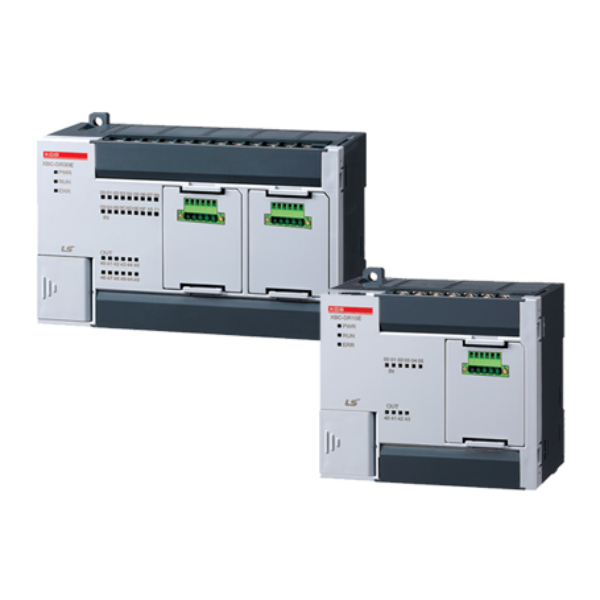

XEC Economic Type 220V AC Pwr 18 x 24V DC In 12 x Rly Out RS-232 loader 1x Ch RS-232C
SKU: XEC-DR30E
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
A line of affordable programmable logic controllers (PLCs) intended for industrial automation applications is the LS Electrical XBC/XEC E-Type series.
Together with features like modular architecture, simple installation, and a variety of configuration possibilities, these controllers provide strong performance and dependability.
While the XEC models include transistor outputs to meet a range of control requirements, the XBC models usually concentrate on relay outputs.
Both series are compatible with many field devices and systems because they support a large variety of input and output combinations.
These PLCs offer effective control and monitoring solutions for industrial processes and are appropriate for tough situations thanks to their DC 24V operating voltage.
Buy currently uses Select Automation shop pricing and checkout.
Input Specifications:
Input point: 18.
Insulation method: Photo-coupler
Rated input voltage: DC 24V
Rated input current: about 4mA (contact point 0~3: about 7mA)
Operation voltage range: DC 20.4~28.8V (within ripple rate 5%)
On voltage/On current: DC 19V or higher/3mA or higher
Off voltage/Off current: DC 6V or lower/1mA or lower
Input resistance: about 5.6Ω.
Insulation pressure: AC 560Vrms/3 cycle (Altitude 2000m)
Insulation resistance: 10KΩ or more by Megohmmeter
Common method: 18 points/COM
Proper cable size: 0.3m²
Operation indicator: LED on when input on
External connection: 24-point terminal block connector (M3 x 6 screw)
Relay output specification:
Output point: 12.
Insulation method: Relay insulation
Rated load voltage/current: DC 24V 2A (Resistive load), AC 220V 2A (COSF=1), 5A/COM
Min. load voltage/current: DC 5V/1Ma
Max. load voltage: AC 250V, DC 125V
Off leakage current: 0.1mA (AC 220V, 60Hz)
Max. on/off frequency: 3,600 times/hour
Surge absorber: none.
Response time: off-on: 10ms or less, on-off: 12ms or less
Common method: 4 points/COM
Proper cable size: stranded cable 0.3~0.75m² (external diameter 2.8m or less)
Operation indicator: LED on when output on
External connection method: 24-point terminal block connector (M3 x 6 screw)
