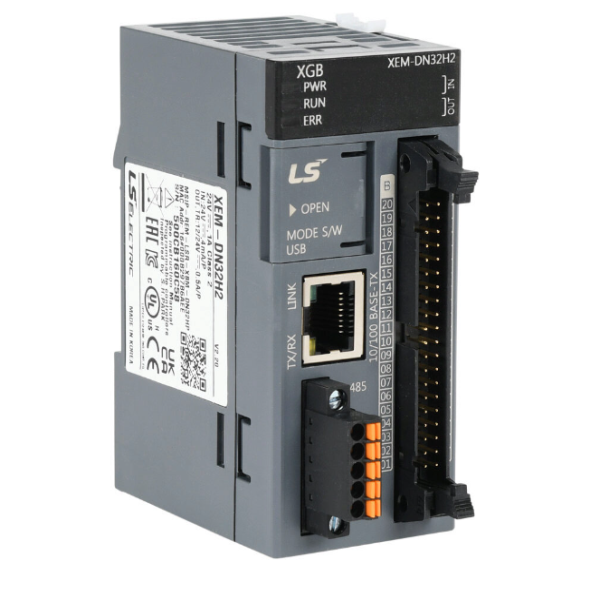

XEM Slim Type DC24 PSU 16 x Inputs 16 x NPN (Sink) Outputs Built-in 2-Axis Posit Function
SKU: XEM-DN32H2
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
A flexible line of slim type programmable logic controllers (PLCs) intended for industrial automation applications is the LS Electrical XBM/XEM Type series.
Together with features like modular architecture, simple installation, and a variety of configuration possibilities, these controllers provide strong performance and dependability.
While the XEM models include transistor outputs to meet a range of control requirements, the XBM models usually concentrate on relay outputs.
Both series are compatible with many field devices and systems because they support a large variety of input and output combinations.
These PLCs offer effective control and monitoring solutions for industrial processes and are appropriate for tough situations thanks to their DC 24V operating voltage.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Program control method: Cyclic execution of stored program, Time-driven interrupt, process-driven interrupt.
I/O control method: Batch processing by simultaneous scan (Refresh method), Directed by program instruction.
Program language: LD (ladder diagram), instruction list, SFC (Sequential function chart) ST (Structured text)
Operator: 18
Basic function: 136+ real number operation function
Basic function block: 43
Dedicated function block: special function dedicated function
Processing speed (basic instruction): 40ns/step
Program capacity: 384KB.
Max. I/O points: 256 points (Main + expansion 7 stages)
Automatic variable (A): 64KB (All area retains setting available)
Input variable (I): 2KB.
Output variable (Q): 2KB.
Direct variable: M: 32KB (all area retains setting available), R: 32KB (2 block), W: 64KB.
Flag variable: F: 4KB, K: 8KB, L: 8KB, U: 576KB.
Total program: 256
Initial task: 1, cyclic task: Max. 16, I/O task: Max. 8, Internal device task: Max. 16, High-speed counter task: Max. 4, Positioning task: 1
Operation mode: RUN, STOP, DEBUG
Self-diagnosis function: detects errors of scan time, memory, I/O and power supply.
Program port: USB 1 channel.
Back up method: Latch area setting in basic parameter.
Internal consumption current: 540mA
