Analog Input, 8 channels, current
SKU: XGF-AC8A
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

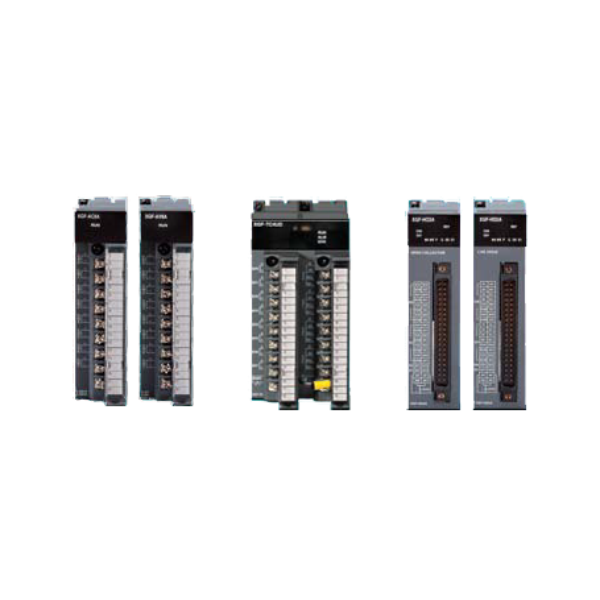

The LS Electrical XGF-AC8A is an Analog Input Module designed for precise and reliable data acquisition in industrial automation systems.
It features 8 analog input channels that can handle a current range of DC 0 to 20 mA, with an absolute maximum input of 30 mA.
The module connects via an 18-point terminal and occupies 64 fixed I/O points or 16 variable I/O points.
This makes it suitable for applications requiring accurate analog signal processing and integration into larger control systems.
The XGF-AC8A ensures high performance and safety, adhering to stringent industrial standards.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Category: Modular PLC (XGK)
Product Type: Analogue Input
No. of input channel: 8 channels
A/D Resolution: 14Bit
Total Number of I/O: 18
Analogue input: DC 4~20mA, 0~20mA
Conversion speed: 250㎲/channel
Max. absolute input: ±30mA
Connection terminal: 18 points
Current consumption: 420mA
Weight (Kg): 0.14
Insulation method: Photo-Coupler insulation between input terminal and power supply (no insulation between channels)
XGT LS High Performance, Rack-Type PLC, XGI / XGR / XGK
Analogue Input Modules
