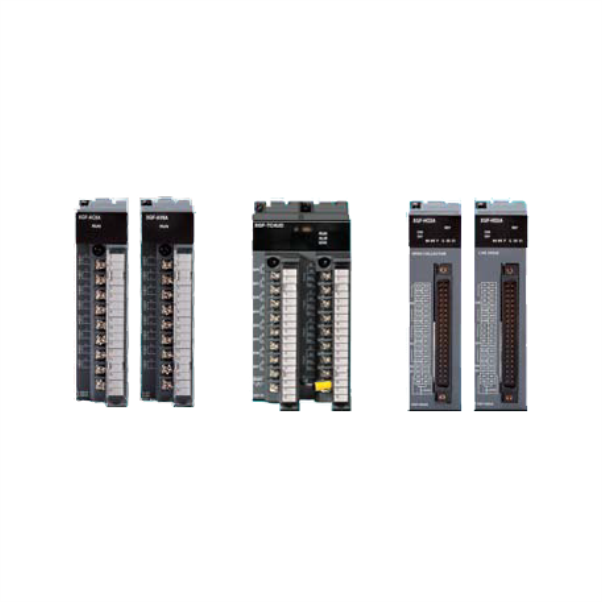

XGT Special Analog Input Module 4 channels, voltage/current input, 610 mA
SKU: XGF-AD4S
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Features:
Quick processing of conversions.
High level of resolution.
Using XG5000, set and track the special module parameter.
Four different digital output data formats are supported.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
A/D Resolution: 16Bit.
Current Consumption: 610mA.
Insulation between channels insulated.
Input Type: DC 1~5V 0~5V 0~10V -10~10V 4~20mA 0~20mA.
Analogue input: DC1-5V, 0-10V, -10-10V/ DC 4-20Ma, 0-20mA.
Digital input: Signed value: -32.000-32.000.
Insulation method: Photo-coupler insulation between terminal and power supply, insulation between channels.
Connection terminal:18 points.
Transaction Speed: 250µs (per channel).
Total Number of I/O: 18.
Product Category: Modular PLC (XGK).
Product Type: Analogue Input.
Max. absolute input: Voltage: ±15V Current: ±30mA.
No. of input channel: 4 channels.
Weight (Kg): 0.14.
XGT LS High Performance, Rack-Type PLC, XGI / XGR / XGK.
Analogue Input Modules.
