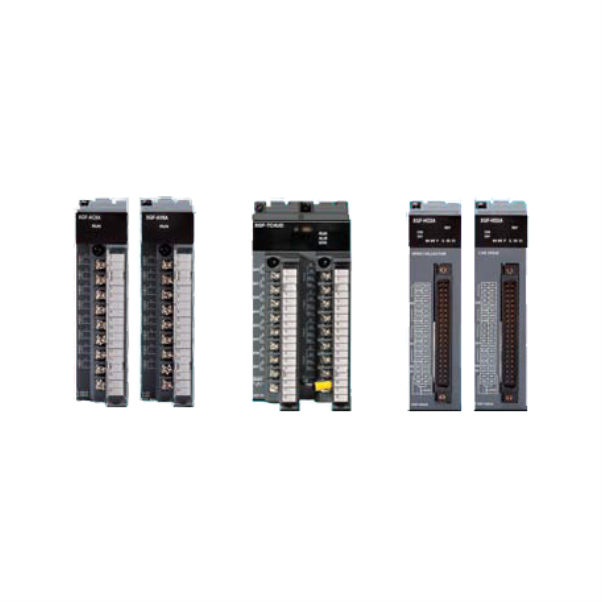

XGT Special Analog Input Module, 8 channels, voltage
SKU: XGF-AV8A
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Features:
Quick processing of conversions.
High level of resolution.
Using XG5000, set and track the special module parameter.
Four different digital output data formats are supported.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Analogue input: DC 1-5V, 0-5V, 0-10V, -10-10V
Digital output: Unsigned value: 0-16.000, Signed value: -8000-8.000.
Insulation method: Photo-coupler insulation between input terminal and power supply, no insulation between channels.
Connection terminal: 18 points
I/O Points: Variable type (dissolving in basic parameter) 16 points
A/D Resolution: 14Bit
Current Consumption: 420mA
Transaction Speed: 250µs (per channel)
Total Number of I/O: 18
Product Category: Modular PLC (XGK)
Product Type: Analog Input
Number of input channel: 8 channels
Max. absolute input: 15V
Weight (Kg): 0.14
