      Computer Link Communication, 2 Channels, Conforms to RS-232C Standard

      SKU: XGL-C22B

      Out of stock

      Availability: Out of Stock

      Short Description
      Pricing available on request Description: The protocol (XGT dedicated communication or Modbus RTU/ASCII) is instantly recognized by the smart server, which then functions. Repeater mode can be used to convert RS-232C to RS422/485 or to operate as an isolated repeater. Includes an integrated termination resistor that is programmable via the basic parameter window. XG5000 offers simple protocol customization and communication parameter configuration. Long-distance communication using a contemporary network. Specific protocol for up to 32 units to be connected in a multi-drop arrangement. Port for communication: RS-232C/422. Adaptable 300–115,200 bps communication speed setting enabling both half-duplex and full-duplex communication. There can be up to 12 modules on a single CPU.. P2P services include XGT/Modbus master and user-defined communication. Different connections to MMI S/W (Modbus ASCII, Modbus RTU, and XGT) Information about communication services (P2P, dedicated) Supporting a dedicated service on a distant connection concurrently. Interaction without extra configuration while switching out the communication module.

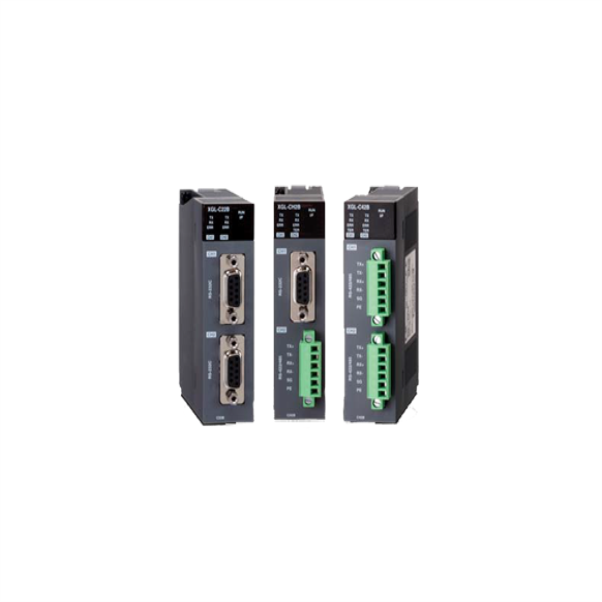

      XGL-C22B
      Alternative image 1
      Specifications: Serial communication channel: RS-232C: 2 Channels. Line configuration: 1:1. Modem connection function: Remote communication with external devices is available via public telephone line by connecting external modem to the module. Operating mode: P2P: XGT client, Modbus ASCII/RTU client, use defined communication. Server: XGT server, Modbus ASCII/RTU server. Data type: start Bit: 1, Data Bit: 7 or 8, Stop Bit: 1 or 2, Parity: Even/odd/none Synchronization type: Asynchronous type Setting Range: 0-31, Max. station no. 32 stations Transmission distance(m): RS-232C: Max. 15 (extendible if modem used) Diagnosis function: Status LED diagnosis XG5000 diagnosis service Appearance size(mm): 98(H) x 27(W) x 90(D) Current consumption (Ma): 420 Communication interface (transmission standard): RS-232 Connection terminal: connector Number of ports: 2 Internal current consumption (mA): 310 XGT LS High Performance, Rack-Type PLC, XGI / XGR / XGK CNet Modules Various independent operation mode: Operation mode. Dedicated protocol mode (Simultaneous support) Program upload/download by XG5000 protocol (RS-232C) Communication using LSIS dedicated protocol. User-defined communication of P2P mode and XGT/ Modbus master.
