      XGT Network Module, DeviceNet system, 125/250/500 kbps

      SKU: XGL-DMEB

      Out of stock

      Availability: Out of Stock

      Short Description
      Pricing available on request Features: Protocol for Device Net. Direct Dnet system control over a range of I/O devices. One master module can control up to 63 subordinate modules. Multi-drop and T-branch connections are examples of flexible network configuration. Ability can be connected to different slave modules and other master modules. Supplying the ability to automatically scan networks and a variety of data using the configuration tool (N Configuration). Using the high-speed link parameter for communication. Connectable to a range of slave I/O, including additional modules (e.g., position controller, A/D module, actuator, switch, valve, optimal switch, etc.). Automated slave module tracking within the network: auto-scan (XG5000). Simple expansion: 12 master modules maximum. Network configuration using the N configurator/XG5000 (monitoring, diagnosing, and setting parameters).

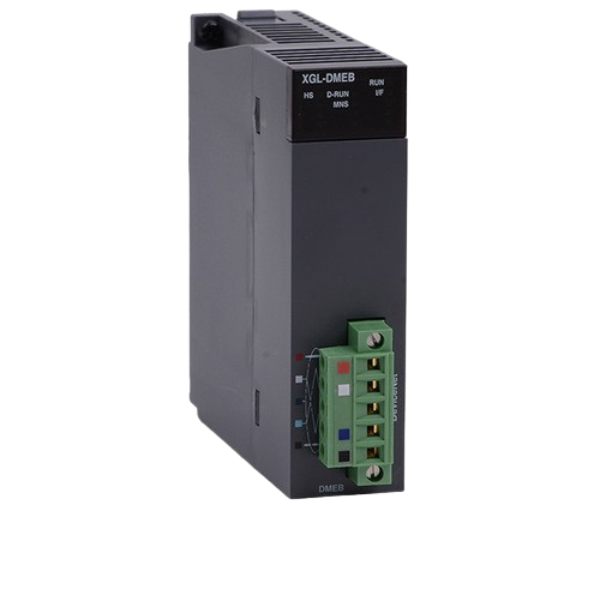

      XGL-DMEB
      Alternative image 1
      Specifications: Transmission speed: 125/250/500kbps Transmission type: I/O Connection: G2, UCMM, I/O Communication: Poll, Bit strobe, COS, Cyclic. Communication distance: Thick cable: 500 (125kbps)/250 (250kbps)/100 (500kbps), Thin cable: 100 (125/250/500kbps) Terminal Resistance (W): 121 (1%, 1/4W) Data Packet: 0-8 Bytes Message Access control: CSMA/NBA Network structure: Trunk/ drop line power/ signal cable inside the identical network cable. Bus type: Poll type Max. number of Nods: Up to 64 (including master) MAC IDs (MAC identifier) System features: insertion and removal of node available in voltage on status Operation Voltage: DC 24V Master/Slave Operation: only in master XG5000 Send/Receive period: Select among 20ms, 50ms, 100ms, 200ms, 500ms, 1s, 5s, and 10s (Default: 20ms) Max. communication point: Send: 128,520 points, Receive: 128,520 points, 16,065 bytes respectively. Max. block number: 63 (Setting Range: 0-62) Max. point number per block: 2040 points (225 bytes) Max. modules installed: Up to 12 (available on basic base and added base) Internal-consumed current: 350mA.
