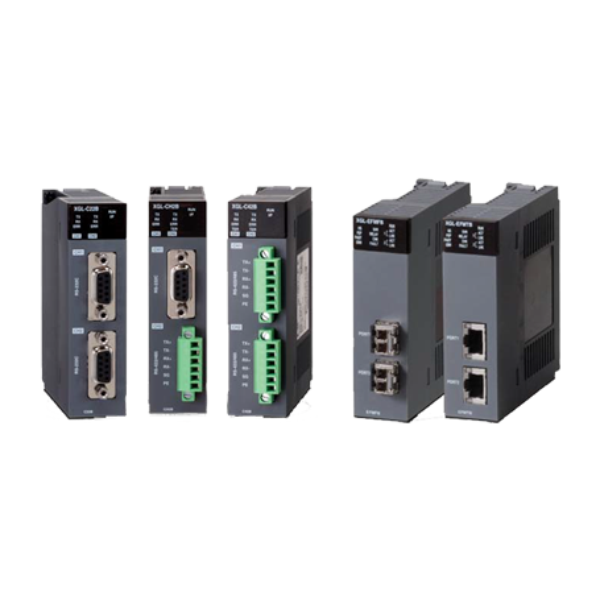

XGT Network Module, Ethernet system, Open Ethernet, 10/100/1000Mbps
SKU: XGL-EFMTB
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Features:
Supports up to 1Gbps of media speed.
1Ch 2Ports are supported.
Configuring the relay parameters and line topology.
Two ports (F.Optic and T.Pair).
The maximum communication load allowed by the server is 5,000 pps.
The XGL-EFMTB fiber optic module features an interchangeable connector, increased communication speed to 1Gbps, and simple maintenance.
Both the old and new XG5000 models are available.
Frame defined by the user It is easier to use thanks to UI improvements.
Strengthening the log function allowed for a variety of diagnoses.
Dedicated protocol (RAPIEnet) and open Ethernet.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Open Ethernet.
Baud rate: 10/100/1000Mbps.
Transmission Type: Base Band.
Max. extended length between nodes: 100m(Node-Hub).
Max. segment length: -
Max. number of nodes: Hub connection (Up to 9 recommended).
Distance between nodes: Integral times of 0.5m.
Max. protocol size: 1,500 Byte.
Access method to service zone: CSMA/CD.
Frame error check: CRC 16 = X15+X14+X13+.... +X2+X+1.
Current consumption (5V):
100Mbps: 560mA.
1Gbps: 900mA.
Weight: 156 g.
