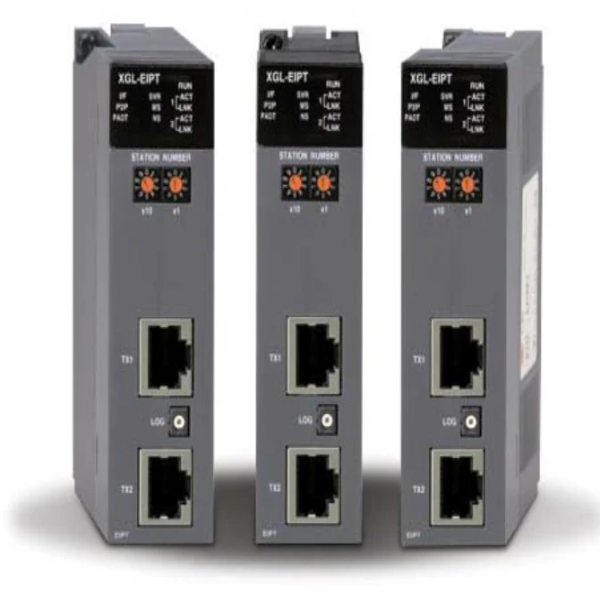

EtherNet/IP I/F module
SKU: XGL-EIPT
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Features:
Extensive support for client communications.
Explicit messaging and encapsulated communications.
Explicit messaging is attached to class 3 (server only).
Class 1 (Cyclic I/O service only) linked implicit (IO) messaging.
Version 2.10 of the Ethernet/IP Conformance Test Suite supports 100Base-TX, 100Mbps, and Full Duplex.
A maximum of 24 units per CPU module (main base or extension base) are available.
There is no need for an extra switch or hub (integrated switch).
Reduced wiring and adaptable installation.
Automatic crossover feature.
Numerous diagnostic features and details about the status of the network.
Packet and data status, auto-scan functionality, P2P status, and communication module status.
Diagnostics for communication modules via a network.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Communication speed: 100Mbps
Modulation method: Base Band
Max. expansion length between nodes: 100m
Access method: CSMA/CD (full duplex)
Topology: Line type (build-in switch), star type
Periodic communication: Implicit IO client
Non-periodic communication: UCMM client
Periodic server: Implicit IO server
Diagnostic function: module information, Auto scan, Media information, Ring test
Connection TCP: 64/128
Connection CIP (IO communication): 64/128
Max. number of service: 8
Max. number of module: 24
Media: UTP/STP category 5
Dimensions: 98(H) x 27(W) x 90(D)
Current consumption: 400mA
