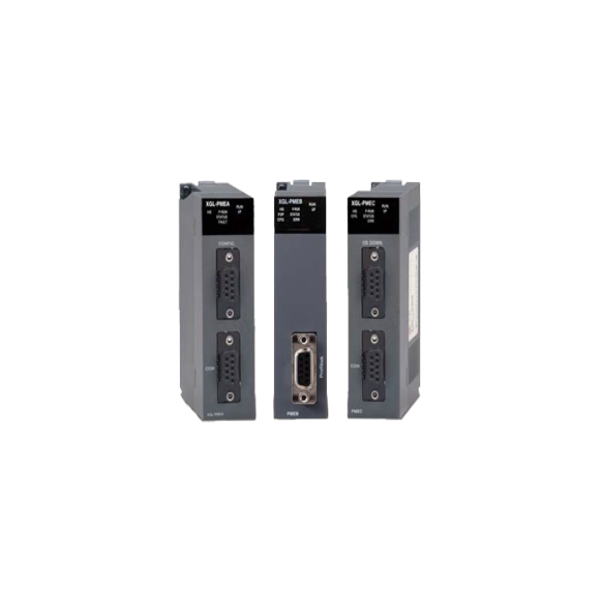

XGT Network Module, XGT Profibus-DP [Pnet] system, Master
SKU: XGL-PMEB
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Features:
Protocol for Profibus-DP.
Communicates with a distributed slave I/O device and a master automation device.
Without an application layer, quick slave communication is possible.
Speed of transmission: 9.6 Kbps to 12 Mbps.
Maximum transmission distance: 1,200 meters.
32 slave stations each segment, with a maximum of 126 slave stations accessible.
N Configurator/XG5000 is used for network configuration (diagnostic, monitoring, and parameter setting).
Master station I/O data: 7 kbytes.
Network slave modules are automatically monitored by Auto-scan (XG5000).
Multi-master.
N Configurator/XG5000 is an easy configuration tool.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Module type: Master
Network type: Profibus-DP
Standard: EN50170/DIN19245
Interface: RS-485 (Electric)
Transmission route: Bus type
Modulation type: NRZ
MAC: Local Token Ring
Max. number of stations per network: 126
Max. number of stations per segment: 32 (including master and repeater)
Max. number of modules per node: 24
Cable: Electric twist shielded pair cable
Max. communication size: 7KB
Max. size per slave: 244Bytes
Internal-consumed current: 500mA.
