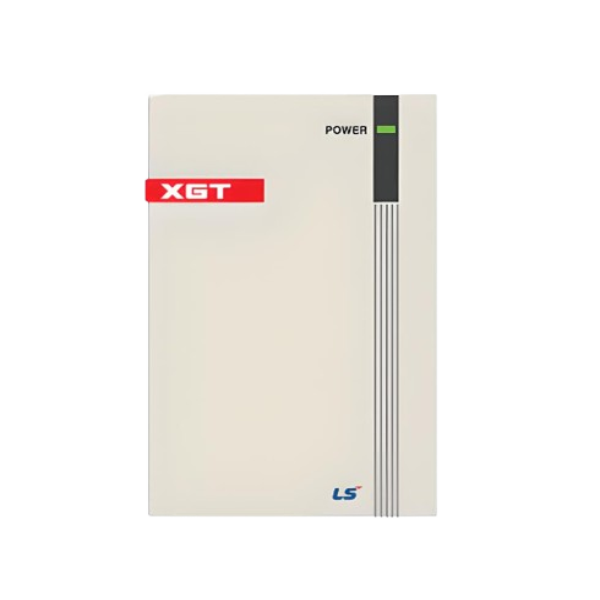

Power Supply Module AC 100-240 / DC5V 3A DC24V 0.6A
SKU: XGP-ACF1
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
For a range of industrial applications, the LS Electrical Power Supply Module XGP-ACF1 provides a dependable and adaptable power supply option.
With its AC 100-240V input voltage range, it may be used in a variety of locations and climates.
Dual output voltages of DC 5V at 3A and DC 24V at 0.6A are provided by the module, guaranteeing reliable and effective power delivery for connected devices.
This power supply is a member of the XGT Series, which is renowned for its dependability and strong performance.
The XGP-ACF1 is perfect for use in automation systems, control panels, and other electrical settings because it guarantees a steady power supply, which improves the overall dependability and effectiveness of your business.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type: for main bases for remote databases
Power: 110VAC, 220VAC
Output A: =24V / 0.6A =5V / 3A
Input Voltage: 110/220 VAC
Input Frequency: 50/60 Hz
Input Inrush Current: 20 A
Output Voltage (1): 5 VDC
Output Current (1): 3 A
Output Voltage (2): 24 VDC
Output Current (2): 0.6 A
LS High Performance, Rack-Type PLC, XGI / XGR / XGK
Rack Power Supplies
