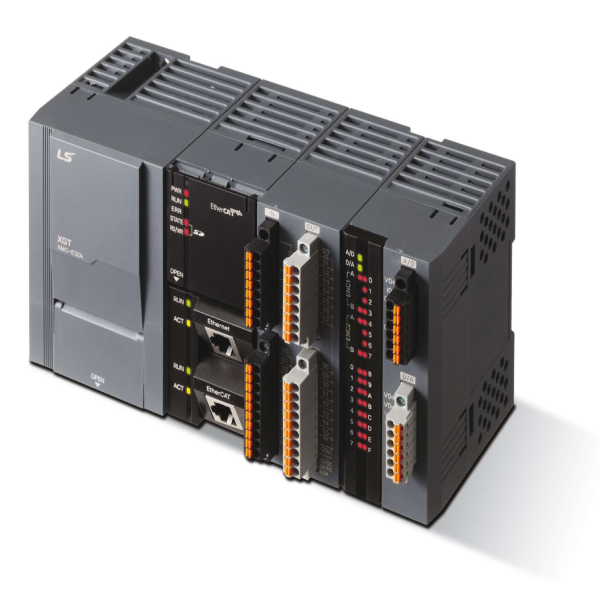

Motion Controller, 16 profiles, Digital Transistor Output
SKU: XMC-E16A
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
It can be connected to several EtherCAT-based devices, such as MAX. 32 remote I/O and two-axis servo drives.
It can be used on CNC machines that support up to 32CAM profiles and have G-code, M-code, or NC commands.
The XMC offers a range of embedded functions, high-tech capabilities tailored for robots and numerical control, and high performance EtherCAT-based motion control functions.
The XMC will assist you in developing an even better and more ideal solution in addition to LS Electric PLC, HMI, and servo products.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product: Motion Controller.
CAM Control: 16 profiles (16384 steps for each profile).
Output Type: Digital Transistor.
Output Type: Analog DC 1~5V /0~5V /0~10V /-10~10V.
Other Feature:
Ethernet: 1 port, communication distance between nodes max.100m.
Communication Speed: Auto/10Mbps/100Mbps.
Encoder Input Type: CW/CCW, Pulse/Direction, Phase A/B.
Ethernet:
Loader service (XG5000).
LS Electric protocol supported (XGT, MODBUS TCP).
FTP server: Read/write files in SD memory card from other devices, SNTP client.
Entry Type: Analog DC 1~5V /0~5V /0~10V /-10~10V /4~20mA /0~20mA.
Communication Protocol: Support XGT custom protocol, Modbus, User-defined protocol, LS bus (inverter protocol).
Types of Communication: EtherCAT (CoE: CANopen over EtherCAT, FoE: File Access over EtherCAT).
Processing Speed: High-speed Program Processing: 6.25ns (basic instruction), EtherCAT based high-speed cycle time: 0.5/1/2/4ms.
Program Memory: 10MB (Motion program), 10MB (NC program).
Robot Control: Delta 3, Delta 3R, Linear Delta.
SD Card: Program backup/restore, Boot process, Data logging.
USB: Installer service supported (XG5000).
