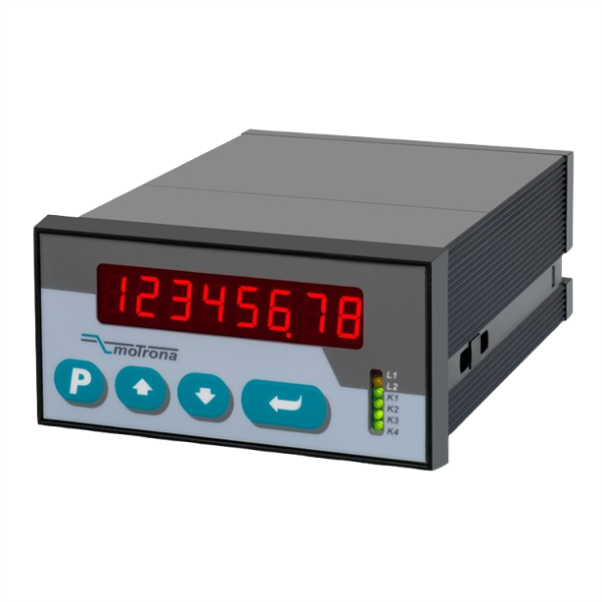

High Speed Position Counters ZA330
SKU: ZA330
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
An eight-digit universal counter made for incremental rotary encoders is the Motrona ZA330 Dual-/Differential-Counter.
Numerous industrial applications, including counting pulses, sums, differences, directions, and cutting lengths, can benefit from its broad range of functions and operating modes.
The ZA330 has an analog output for current or voltage operation and is well-known for its broad input frequency range and adaptability.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Pulse Inputs: 2 scalable inputs with format A, /A, B, /B [HTL / TTL / RS422, single channel, dual channel, symmetric or asymmetric].
Control Inputs: 4 control inputs for PNP / NPN / Namur signals [10 ... 30 VDC].
Input Frequency: Up to 1 MHz.
Analog Output: Scalable 14-bit analog output for ±10 V or 0/4 ... 20 mA.
Transistor Outputs: 4 fast transistor outputs with push-pull characteristic, short-circuit-proof [5 ... 30 VDC].
Relay Outputs: 4 relay outputs.
Programmable Preset Values: 4 programmable preset values.
Power Supply: 24 VAC and 17 ... 40 VDC.
Housing: Compact norm panel housing.
Display: 8 digits LED display with 10 mm height.
Display Range: -19999999 to 99999999.
Interface: Serial RS232 interface.
Dimensions: 96 x 48 x 140 mm (3.78 x 1.89 x 5.51 inches).
