High Speed Position Counters ZA340
SKU: ZA340
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

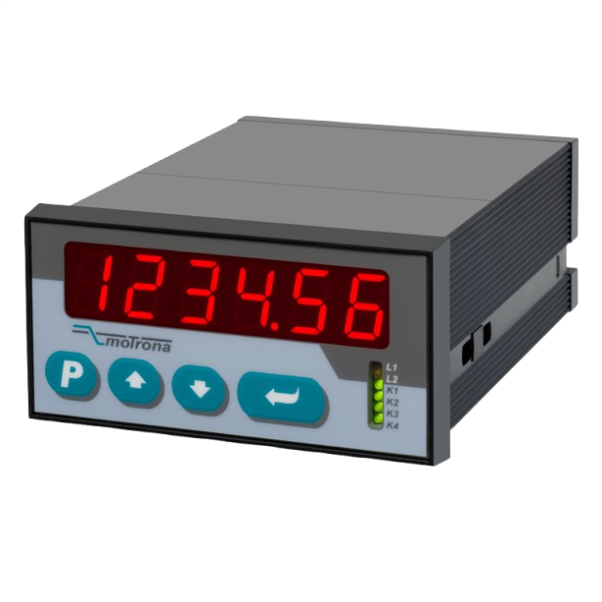

For difficult counting duties in machine and plant engineering, the Motrona ZA340 Dual-/Differential-Counter is a rapid and accurate dual counter.
For a variety of control and regulation applications, it has an analog output and a 6-digit LED display.
Applications for this counter include showing the quantity of pieces, positions, events, totals, discrepancies, or real cutting lengths.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Pulse Inputs: 2 scalable inputs with format A, /A, B, /B [HTL / TTL / RS422, single channel, dual channel, symmetric or asymmetric].
Control Inputs: 4 control inputs for PNP / NPN / Namur signals [10 ... 30 VDC].
Input Frequency: Up to 1 MHz.
Analog Output: Scalable 14-bit analog output for ±10 V or 0/4 ... 20 mA.
Transistor Outputs: 4 fast transistor outputs with push-pull characteristic, short-circuit-proof [5 ... 30 VDC].
Relay Outputs: 4 relay outputs.
Programmable Preset Values: 4 programmable preset values.
Power Supply: 24 VAC and 17 ... 40 VDC.
Housing: Compact norm panel housing.
Display: 6 digits LED display with 15 mm height.
Display Range: -199999 to 999999.
Interface: Serial RS232 interface.
Dimensions: 96 x 48 x 140 mm (3.78 x 1.89 x 5.51 inches).
