High Speed Position Counters ZA632
SKU: ZA632
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

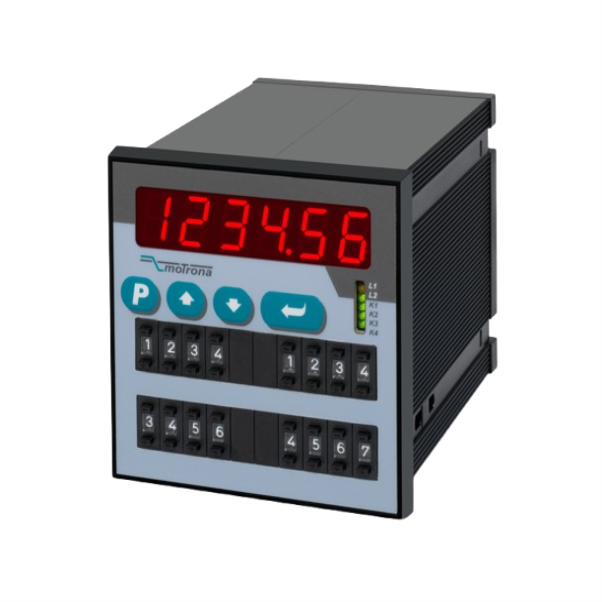

A high-speed, multipurpose counter made for demanding industrial applications is the Motrona ZA632 Preselect Counter.
Its 8-digit LED display, several functions, and configurable operating modes make it appropriate for a variety of uses, such showing the quantity of pieces, positions, events, totals, discrepancies, or real cutting lengths.
Two thumbwheel switches on the front of the ZA632 make it simple to preselect limit values, which can be utilized for relay control.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Pulse Inputs: 2 scalable inputs with format A, /A, B, /B [HTL / TTL / RS422, single channel, dual channel, symmetric or asymmetric].
Control Inputs: 4 control inputs for PNP / NPN / Namur signals [10 ... 30 VDC].
Input Frequency: Up to 1 MHz.
Analog Output: Scalable 14-bit analog output for ±10 V or 0/4 ... 20 mA.
Transistor Outputs: 4 fast transistor outputs with push-pull characteristic, short-circuit-proof [5 ... 30 VDC].
Relay Outputs: 4 relay outputs.
Programmable Preset Values: 4 programmable preset values.
Power Supply: 24 VAC and 17 ... 40 VDC.
Housing: Compact norm panel housing.
Display: 8 digits LED display with 10 mm height.
Display Range: -19999999 to 99999999.
Interface: Serial RS232 interface.
Dimensions: 96 x 48 x 140 mm (3.78 x 3.78 x 5.51 inches).
