High Speed Position Counters ZA640
SKU: ZA640
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

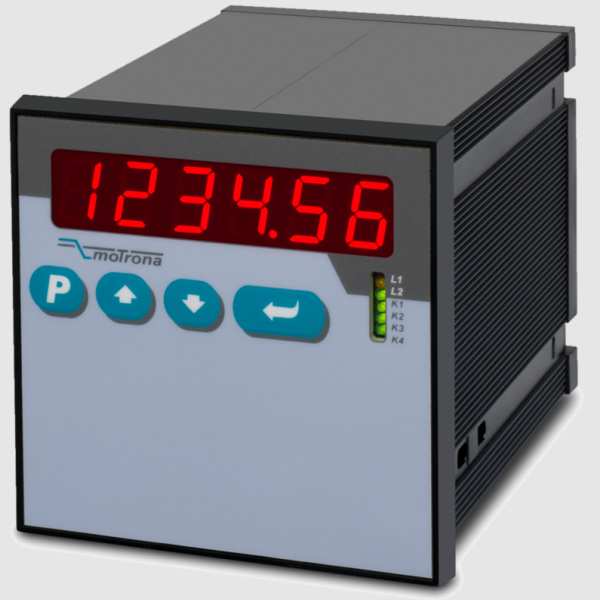

A high-speed, multipurpose counter made for demanding industrial applications is the Motrona ZA640 Preselect Counter.
It can be used to show the number of pieces, positions, events, totals, discrepancies, or real cutting lengths, among other things. It has a 6-digit LED display and a variety of customizable working modes.
With its scalable analog output that can be utilized in both voltage and current mode, the ZA640 offers more versatility for jobs involving control and regulation.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Pulse Inputs: 2 scalable inputs with format A, /A, B, /B [HTL / TTL / RS422, single channel, dual channel, symmetric or asymmetric].
Control Inputs: 4 control inputs for PNP / NPN / Namur signals [10 ... 30 VDC].
Input Frequency: Up to 1 MHz.
Analog Output: Scalable 14-bit analog output for ±10 V or 0/4 ... 20 mA.
Transistor Outputs: 4 fast transistor outputs with push-pull characteristic, short-circuit-proof [5 ... 30 VDC].
Relay Outputs: 4 relay outputs.
Programmable Preset Values: 4 programmable preset values.
Power Supply: 24 VAC and 17 ... 40 VDC.
Housing: Compact norm panel housing.
Display: 6 digits LED display with 15 mm height.
Display Range: -199999 to 999999.
Interface: Serial RS232 interface.
Dimensions: 96 x 48 x 140 mm (3.78 x 3.78 x 5.51 inches).
