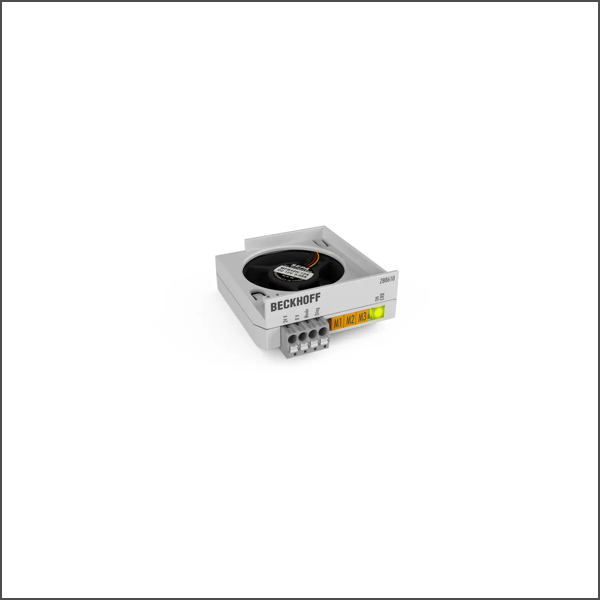

ZB8610 Fan cartridge for EtherCAT and Bus Terminals
SKU: ZB8610
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The ZB8610 fan cartridge is used for forced ventilation within the terminal housing and ensures better heat dissipation from the housing.
Buy currently uses Select Automation shop pricing and checkout.
Number of channels: 1 fan
Nominal voltage: 24 V DC (-15 %/+20 %)
Operating modes: temperature-controlled, full speed, frequency-controlled
Rotational frequency fan: adjustable in 9 steps via frequency (1…9 Hz), max. ~5500 rpm
Diagnostics: fan fault
Life span: typ. MTBF = 280,000 h @ 20 °C
Operating/storage temperature: -25…+70 °C/-40…+85 °C
Relative humidity: 95 %, no condensation
Dimensions (W x H x D): 47 mm x 22 mm x 55 mm
Weight: 32 g (incl. bracket)
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP20/see documentation
Approvals/markings: CE, UL
Special features: increased performance and extended temperature range for various terminals
