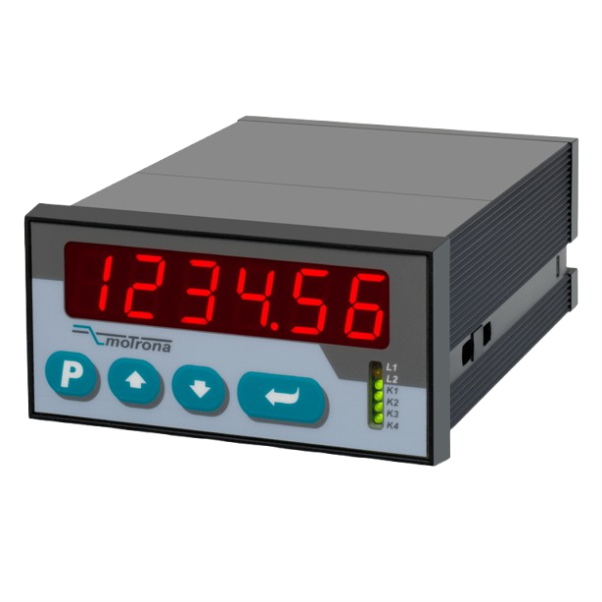

High Speed Position Counters ZD340
SKU: ZD340
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
For difficult counting duties in industrial applications, the Motrona ZD340 Dual-/Differential-Counter is a high-speed, multipurpose counter.
It can be used to show the number of pieces, positions, events, totals, discrepancies, or real cutting lengths, among other things. It has a 6-digit LED display and a variety of customizable working modes.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Pulse Inputs: 2 scalable inputs with format A, /A, B, /B [HTL / TTL / RS422, single channel, dual channel, symmetric or asymmetric].
Control Inputs: 4 control inputs for PNP / NPN / Namur signals [10 ... 30 VDC].
Input Frequency: Up to 1 MHz.
Transistor Outputs: 4 fast transistor outputs with push-pull characteristic, short-circuit-proof [5 ... 30 VDC].
Relay Outputs: 4 relay outputs.
Programmable Preset Values: 4 programmable preset values.
Power Supply: 24 VAC and 17 ... 40 VDC.
Housing: Compact norm panel housing.
Display: 6 digits LED display with 15 mm height.
Display Range: -199999 to 999999.
Interface: Serial RS232 interface.
Dimensions: 96 x 48 x 140 mm (3.78 x 1.89 x 5.51 inches).
