High Speed Position Counters ZD642
SKU: ZD642
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

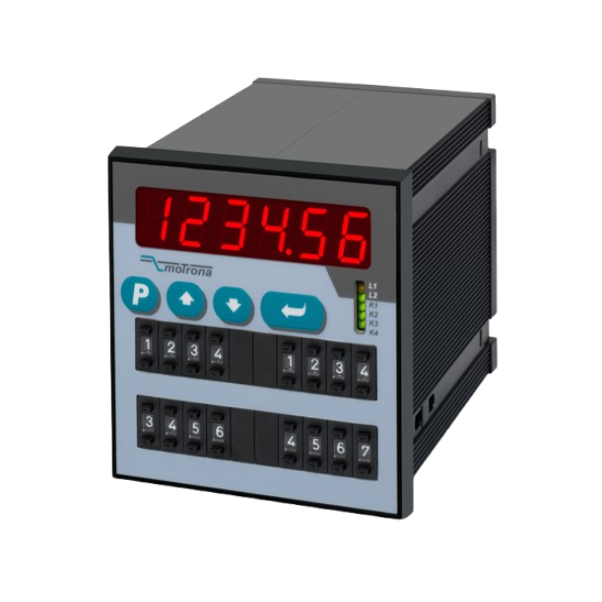

A high-speed, multipurpose counter made for demanding industrial applications is the Motrona ZD642 Preselect Counter.
It can be used to show the number of pieces, positions, events, totals, discrepancies, or real cutting lengths, among other things. It has a 6-digit LED display and a variety of customizable working modes.
Two thumbwheel switches on the front of the ZD642 make it simple to preselect limit settings, which can be utilized for relay control.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Pulse Inputs: 2 scalable inputs with format A, /A, B, /B [HTL / TTL / RS422, single channel, dual channel, symmetric or asymmetric].
Control Inputs: 4 control inputs for PNP / NPN / Namur signals [10 ... 30 VDC].
Input Frequency: Up to 1 MHz.
Transistor Outputs: 4 fast transistor outputs with push-pull characteristic, short-circuit-proof [5 ... 30 VDC].
Relay Outputs: 4 relay outputs.
Programmable Preset Values: 4 programmable preset values.
Power Supply: 24 VAC and 17 ... 40 VDC.
Housing: Compact norm panel housing.
Display: 6 digits LED display with 15 mm height.
Display Range: -199999 to 999999.
Interface: Serial RS232 interface.
Dimensions: 96 x 48 x 140 mm (3.78 x 3.78 x 5.51 inches).
