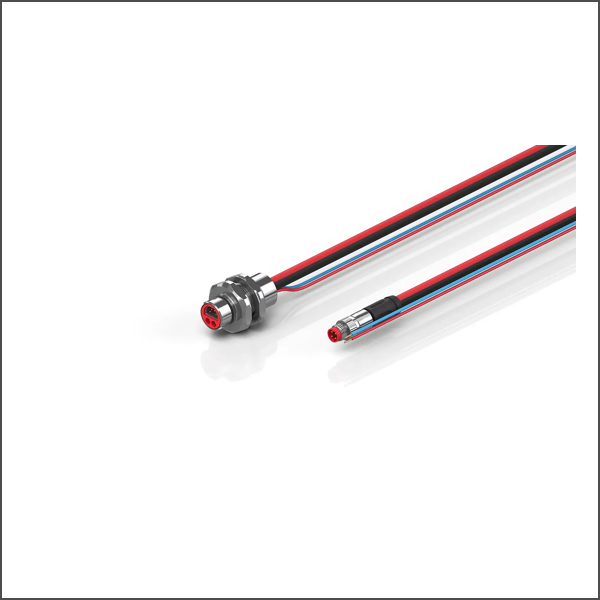

ECP cable 1.00 m ZK7102-AF00-0010
SKU: ZK7102-AF00-0010
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
B12, flange, straight, short, male+male, pins 2+4, front assembly, P-coded – 1 x M8, plug, straight | 1 x open end
Buy currently uses Select Automation shop pricing and checkout.
Head A
Installation size: B12
Connector type: flange front assembly
Contact type: male+male
Number of positions (face): pins 2+4
Coding: P-coded
Wire termination: crimp connection
Head B
Shielding: yes
Installation size: M8
Connector type: plug
Contact type: male
Number of positions (face): 4-pin
Coding: P-coded
Body color: black
Head C
Installation size: open end
Number of positions (face): 2-wire
Meterware
Cross-section (Ethernet): 1 x 4 x 0.34 mm² (AWG 22)
Cross-section (power): 2 x 0.75 mm² (approx. AWG18)
Use: drag-chain suitable
Material jacket: PUR (polyurethane)
Outer cable diameter: 6.5 mm ± 0.2 mm (0.2559" ± 0.0079")
Jacket color: black (similar to RAL 9005) with red stripe (similar to RAL 3020)
Dimensions:
A1: 36.00 mm
A2: WAF 24
A3: 16.50 mm
A4: 9,90 mm
A5: 22.10 mm
A6: M18
B1: 41.00 mm
